Important Notice

1. Connection Direction: The USB 2.0 female connector receives the phone connection through a compatible data cable. The HDMI male connector outputs to an HDMI display. This is not a bidirectional HDMI to USB converter.
2. External Power Required: Connect the separate USB male power plug to an external 5V 1A phone charger to power the adapter. A charger and phone data cable are not included.
3. Phone Setup: Phone compatibility and settings matter. For an Android phone that prompts for USB debugging, follow the phone's permission prompt and turn on USB debugging in Developer options as needed. These Android steps must not be applied to iPhone. Turn debugging off after use when it is no longer needed.
4. Display Support: Connect to a compatible HDMI input on a TV, monitor or projector. Lufeng X7 and Sic Bo are mentioned as exclusions; do not treat them as supported models.
5. Check Compatibility: An operating system version alone does not guarantee mirroring. Confirm your phone, cable and HDMI display support the connection before ordering.

Product Overview

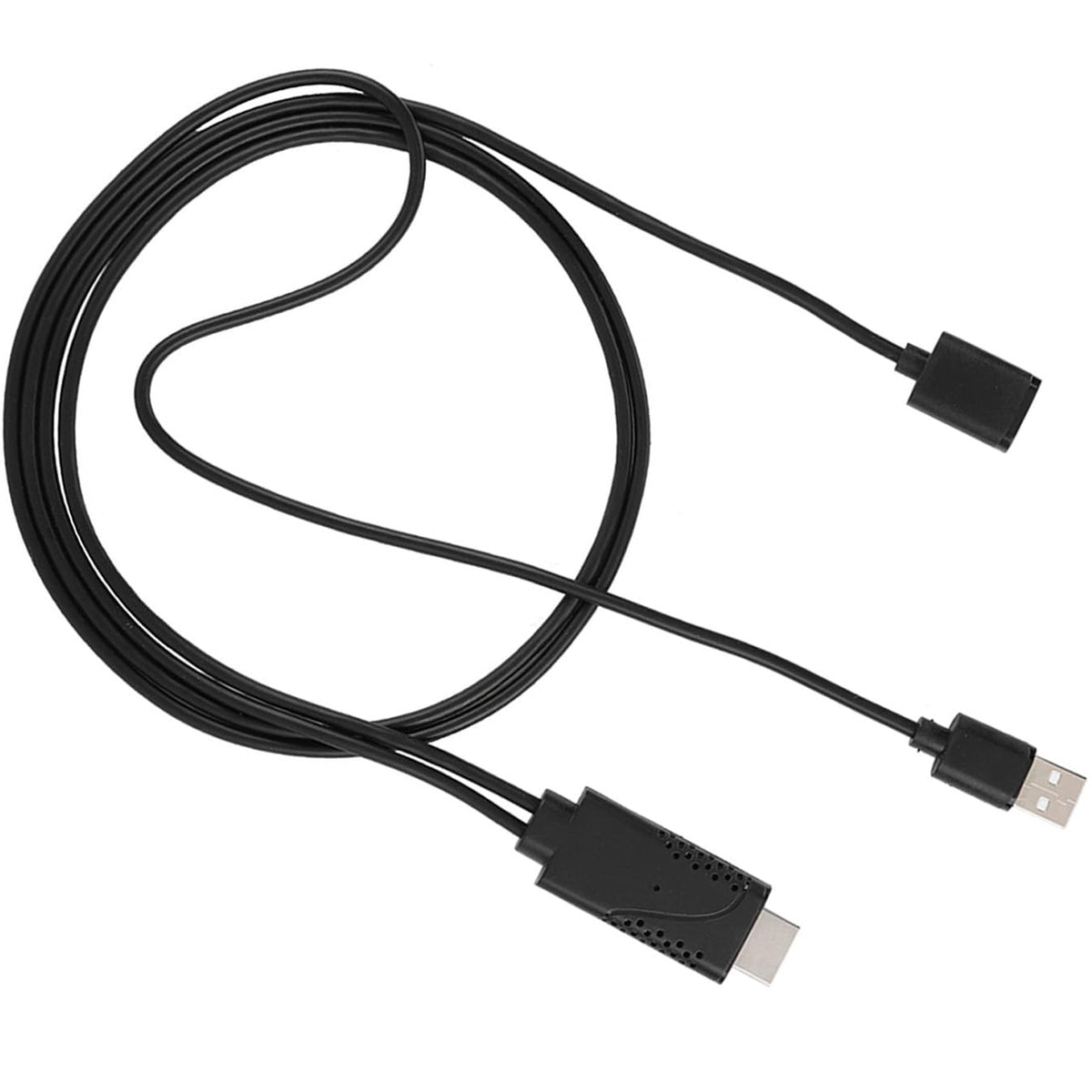

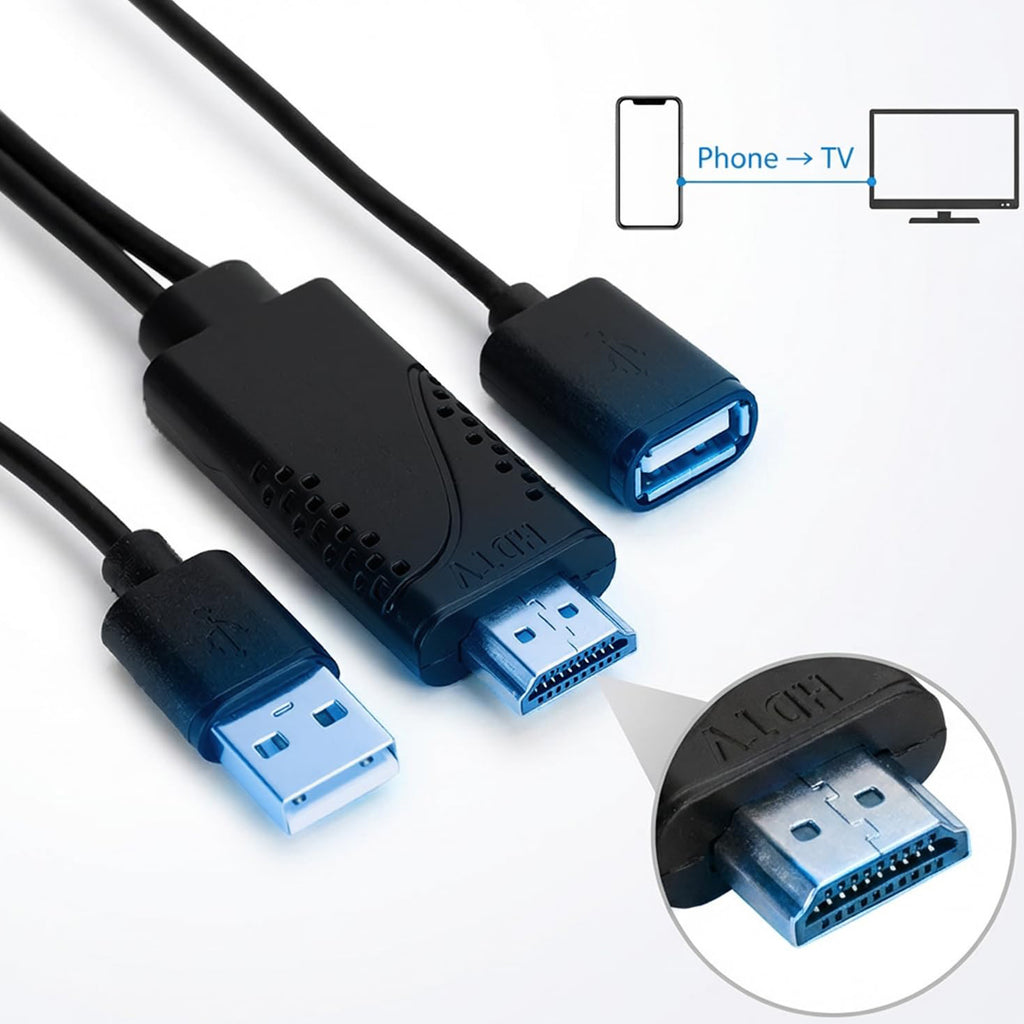

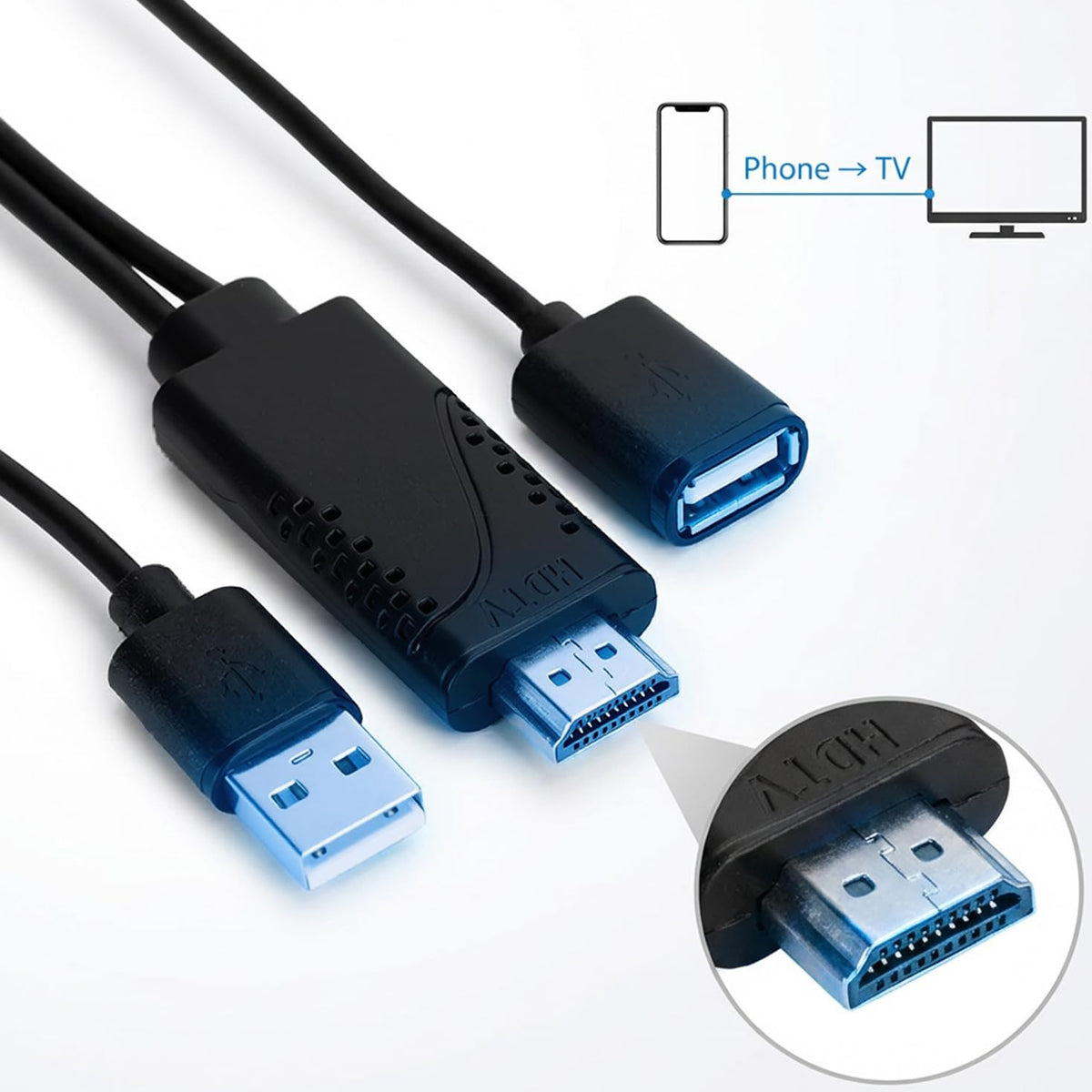

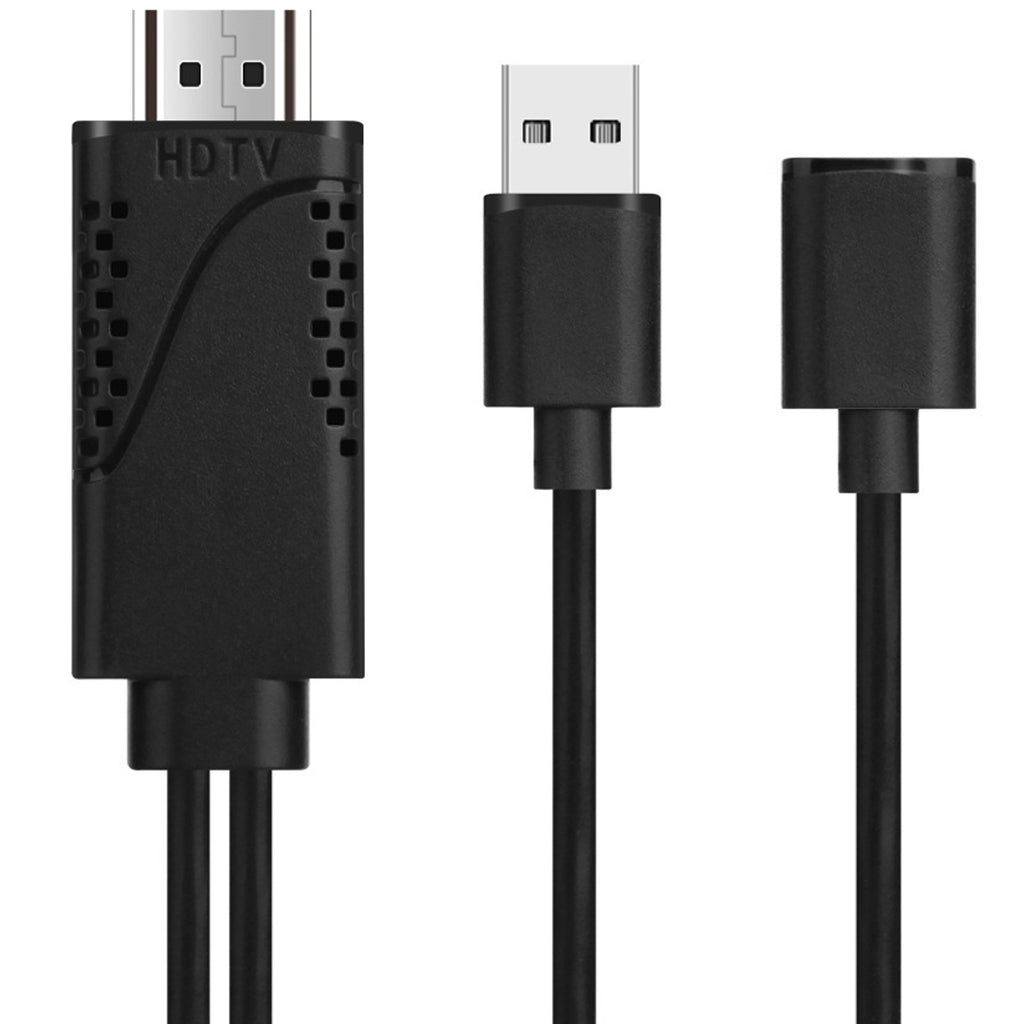

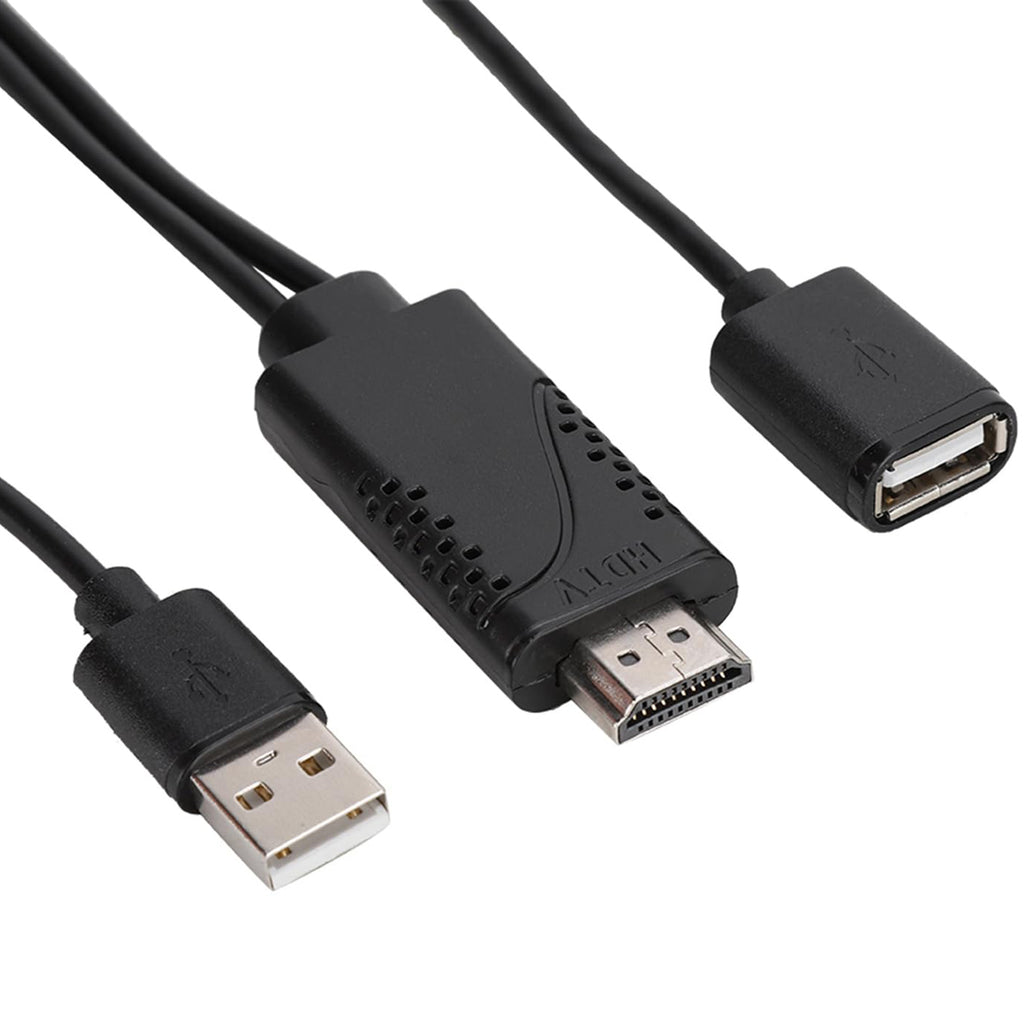

Use this powered phone screen mirroring cable to bring a compatible phone display to a larger HDMI screen for a presentation or home viewing. The USB 2.0 female input connects to the phone through a compatible data cable, a separate USB male plug receives external 5V 1A power, and the HDMI male connector connects to the display. It has an AM8255 chip, supports up to 1080p output and has a cable length of approximately 1m.

Key Features

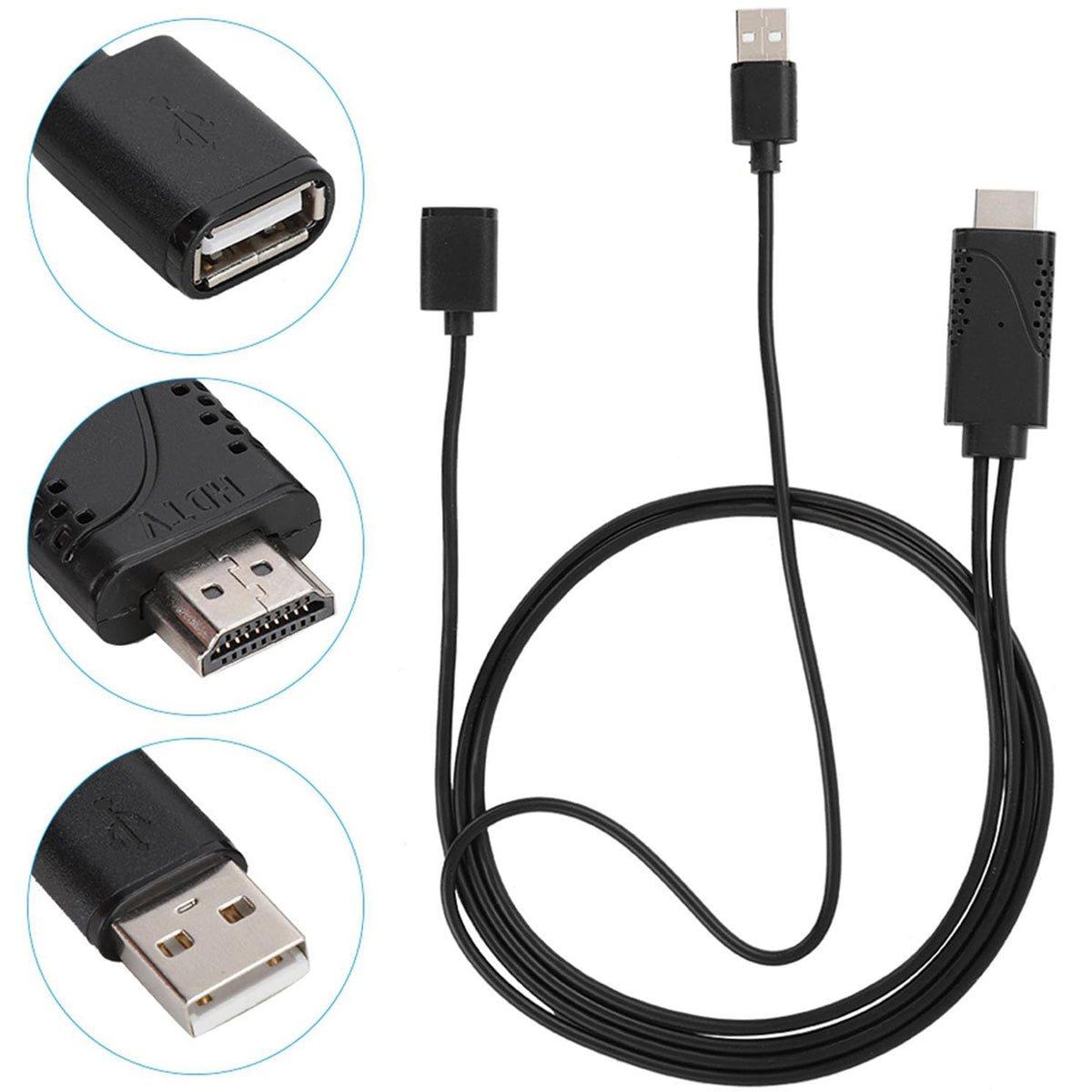

• Phone-to-HDMI screen mirroring with separate USB power connection
• HDMI male output for a compatible TV, monitor or projector HDMI input
• USB 2.0 female input for a compatible phone data cable
• AM8255 chip and up to 1080p output

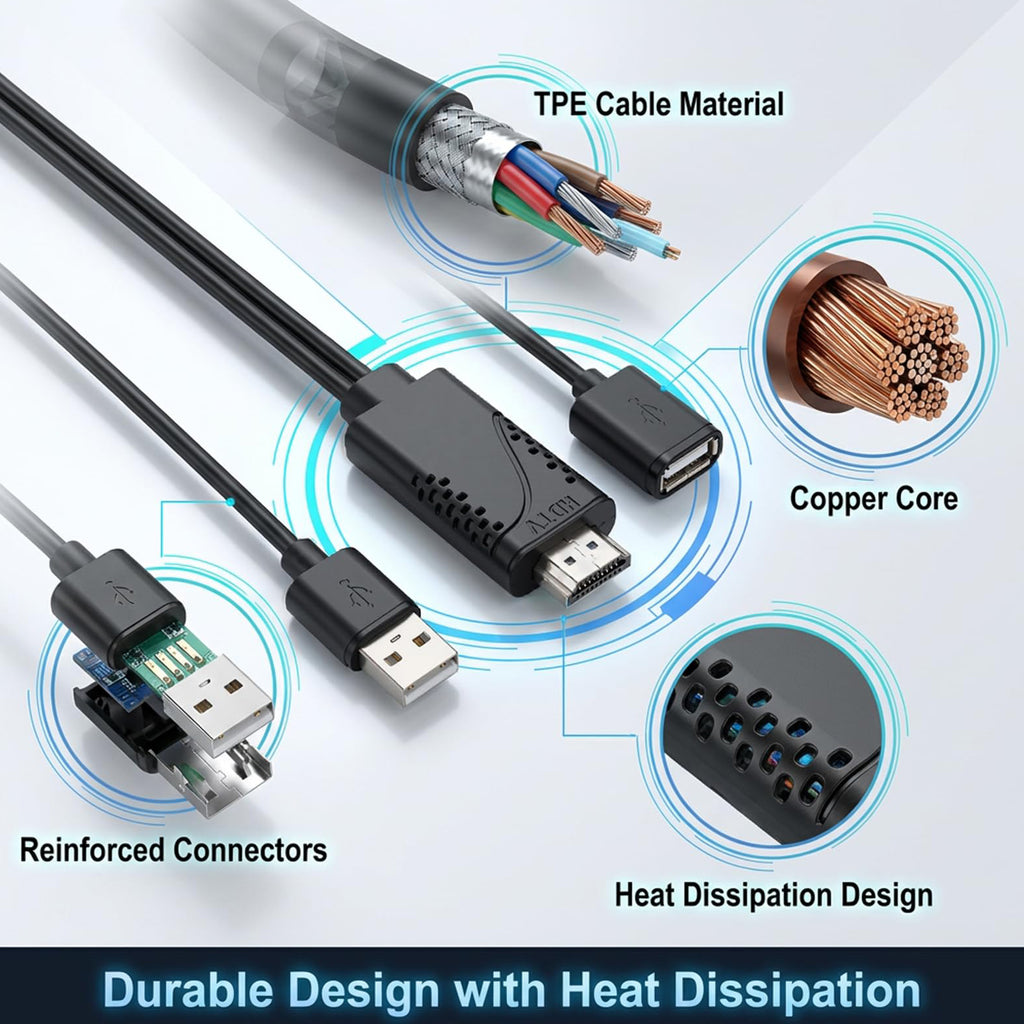

• Approximately 1m cable length and vented ABS housing

Compatible Devices

Compatibility Note: For compatible iPhone and Android phones, including devices running iOS 8 or above and Android 5.0 or above. Check phone support and the required connection method; an operating system version alone does not guarantee screen mirroring. TVs and monitors need a compatible HDMI input. For projectors, confirm model support; Lufeng X7 and Sic Bo are excluded.

• Compatible iPhone or other iOS phones running iOS 8 or above, subject to the connection method and device support
• Compatible Android phones running Android 5.0 or above, subject to required settings and device support
• TVs and monitors with a compatible HDMI input
• Compatible projectors with an HDMI input, subject to model support

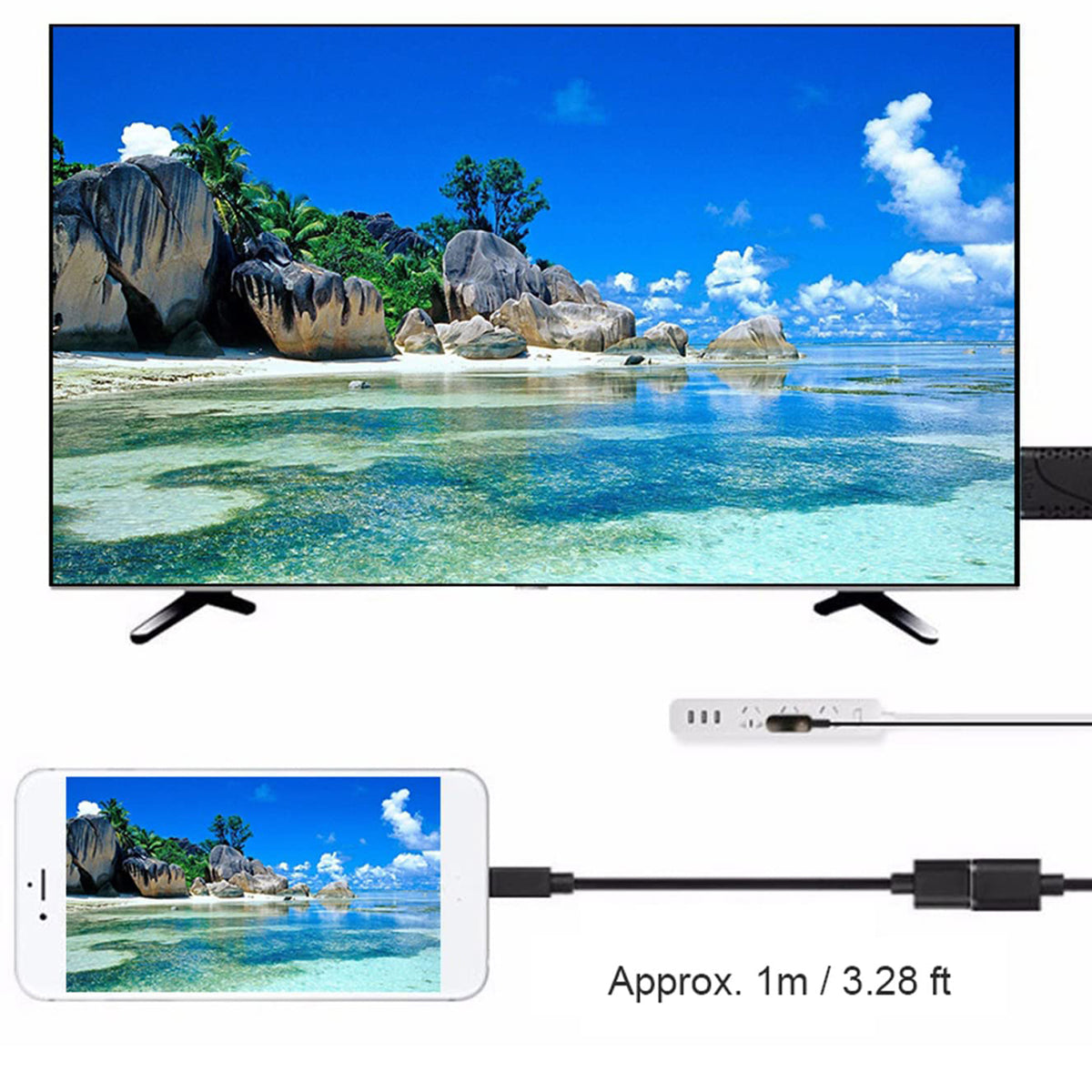

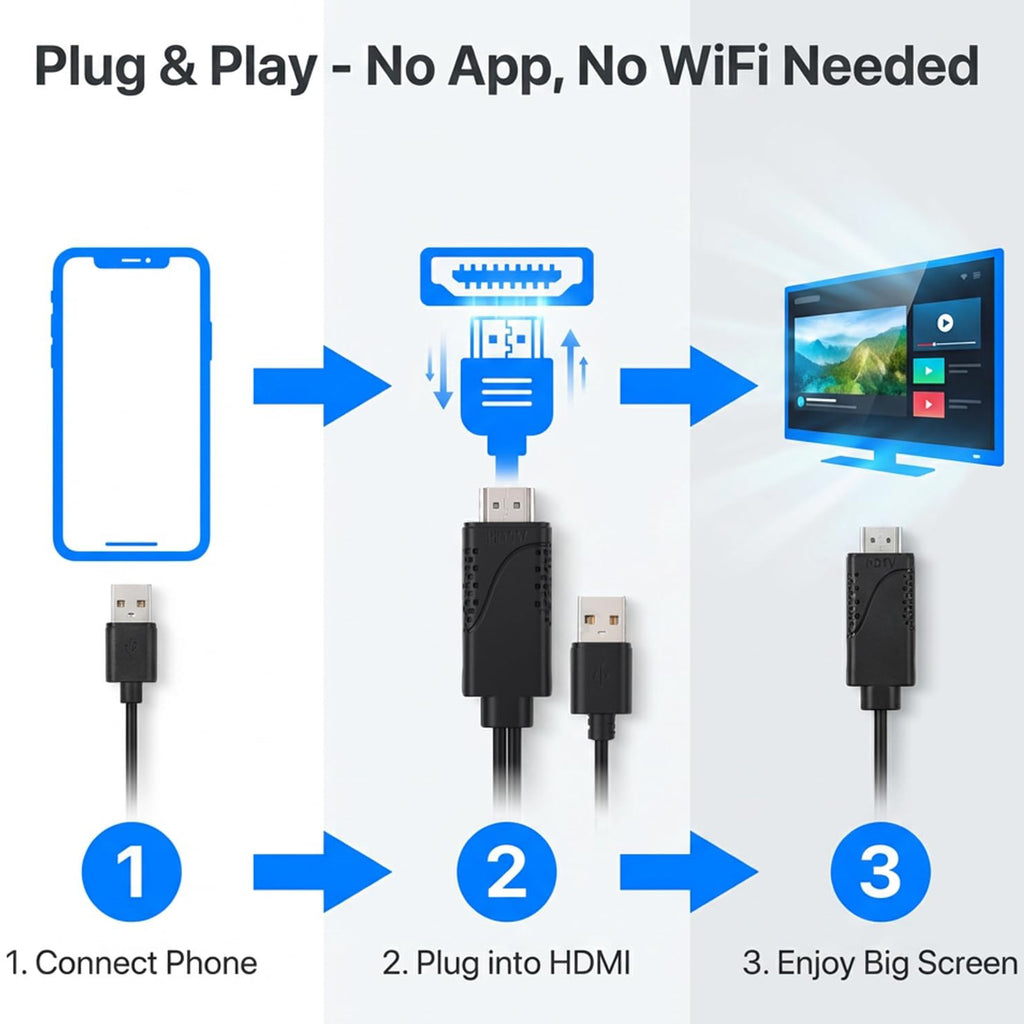

How to Connect

1. Insert the HDMI male connector into the HDMI input on a compatible TV, monitor or projector, then select that HDMI input on the display.
2. Connect the USB male power plug to an external 5V 1A phone charger to power the adapter.
3. Use a compatible data cable to connect the phone to the adapter's USB 2.0 female input. If the phone shows a connection or permission prompt, review and allow the relevant connection as appropriate.
4. On a compatible Android phone, if USB debugging is required, open the phone's Developer options and enable USB debugging. This step is for Android, not iPhone.
5. Allow approximately 2 minutes for connection as a reference, not a guaranteed time. Check power, data cable, display input and phone support if no picture appears.

Common Daily Applications

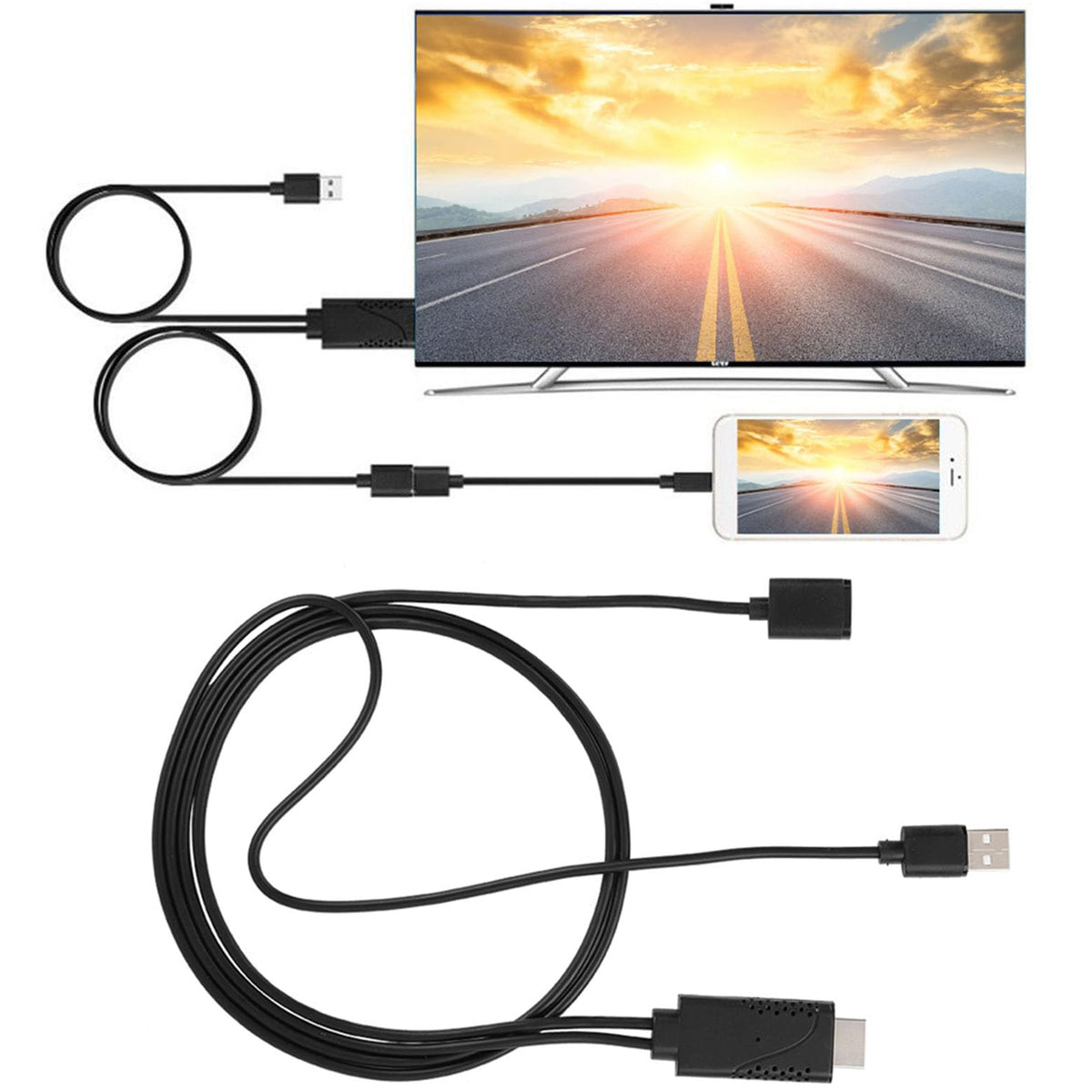

• Show a compatible phone screen on a larger HDMI TV or monitor at home
• Share a compatible phone display in a meeting or presentation
• Connect to a supported HDMI projector for a larger viewing surface

Specifications

Frequently Asked Questions FAQ

1. Does the adapter need an external power source?
   Yes. Connect its USB male power plug to an external 5V 1A supply.
2. Which way does video travel?
   From a compatible phone through the USB female input to an HDMI display through the HDMI male output; reverse conversion is not specified.
3. Do I need a separate cable for my phone?
   Yes. Use a compatible phone data cable between the phone and the USB female input; the package contains one adapter cable.
4. Does every Android or iPhone work?
   No. iOS 8 and above and Android 5.0 and above are mentioned, but actual compatibility depends on phone support, connection and setup.
5. Should iPhone users enable USB debugging?
   No. USB debugging and Developer options in these instructions refer to compatible Android phones only.
