⚠️ Important Notice: Uni-Directional Signal, Thunderbolt Display Incompatibility & Cable Guide

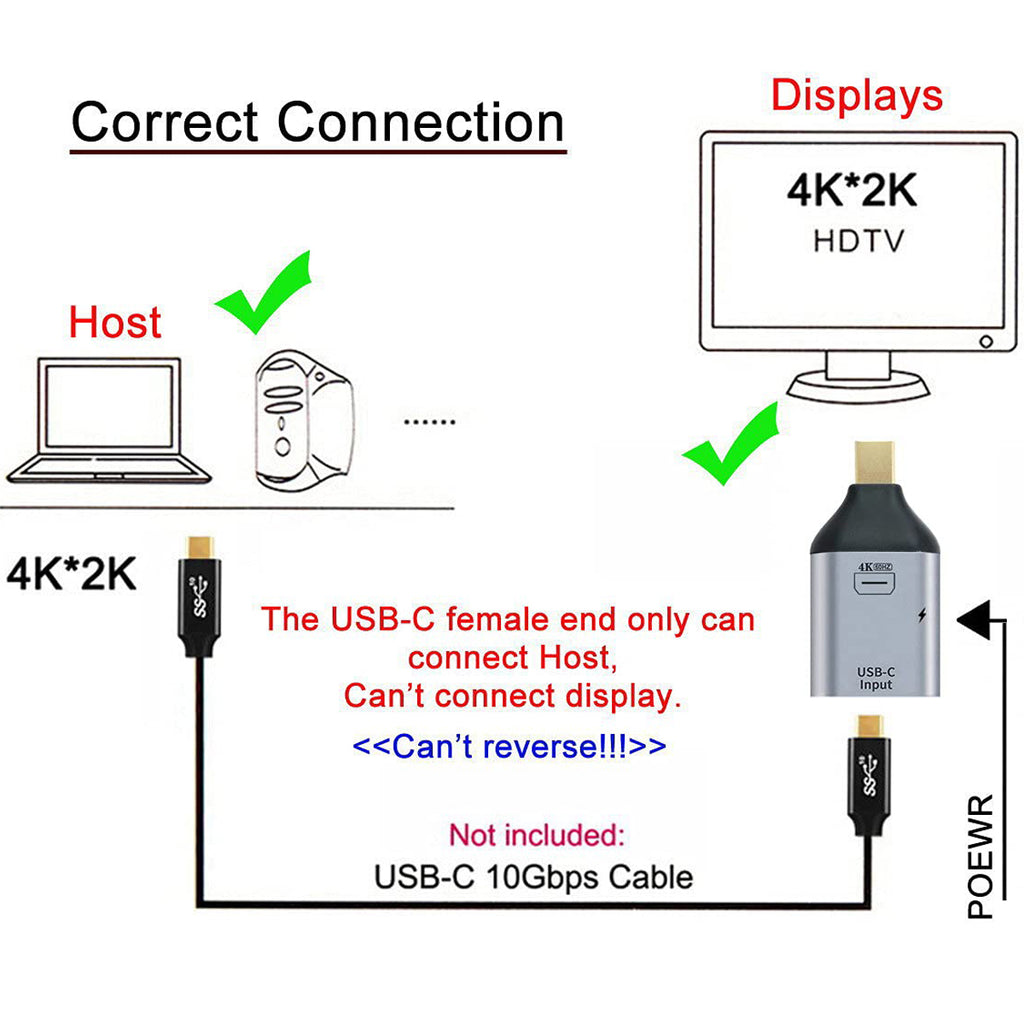

1. Uni-Directional Only (USB-C Host to Mini DP Display): This adapter transmits video signals in ONE direction only: from a USB-C laptop/phone/tablet (Host) to a Mini DisplayPort display/projector (Sink). It is NOT bidirectional and CANNOT connect a Mini DP computer to a USB-C monitor.

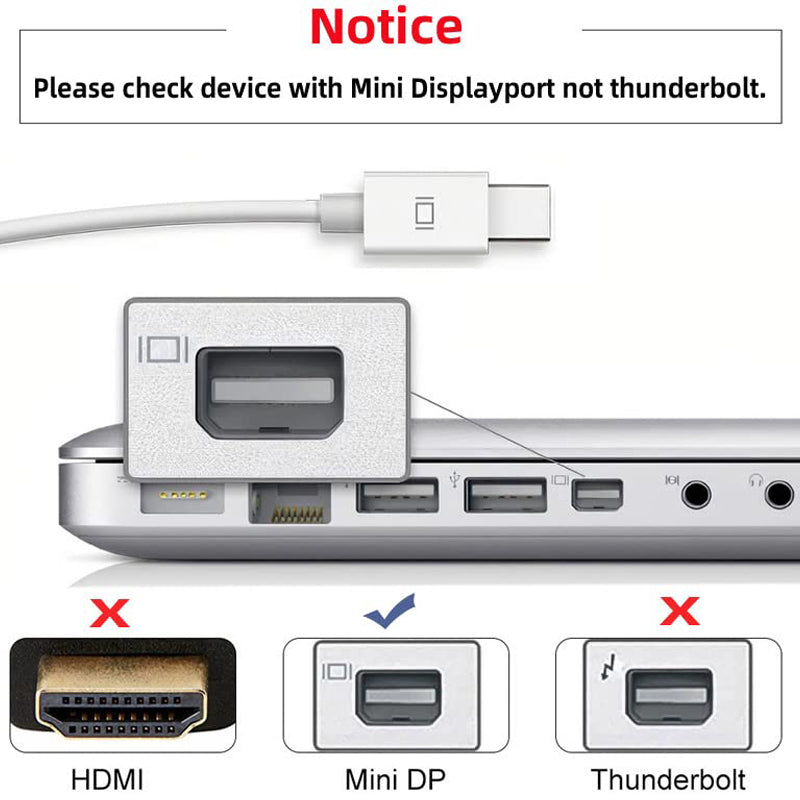

2. Incompatible with Apple Thunderbolt 1/2 Displays: While Apple Thunderbolt Displays share the exact physical shape as Mini DisplayPort, they operate on a proprietary Thunderbolt bus. This adapter works ONLY with genuine Mini DisplayPort displays (such as Apple LED Cinema Displays or standard Mini DP monitors); it does NOT work with Thunderbolt displays.

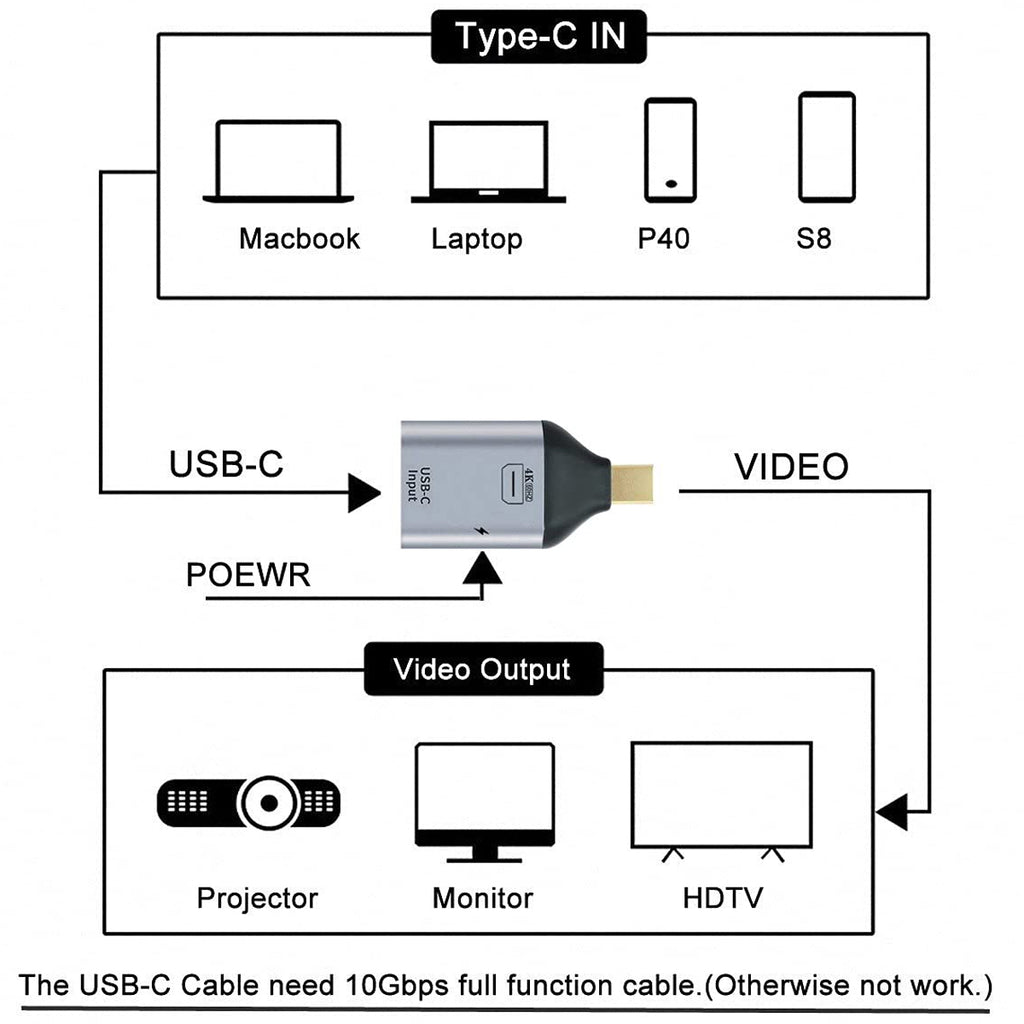

3. 10Gbps USB-C Video Cable Required: To transmit video, you must connect your host device to the adapter's USB-C input using a full-featured USB-C to USB-C cable (supporting 10Gbps and DisplayPort Alt Mode). Standard USB 2.0 charging cables cannot carry video signals.

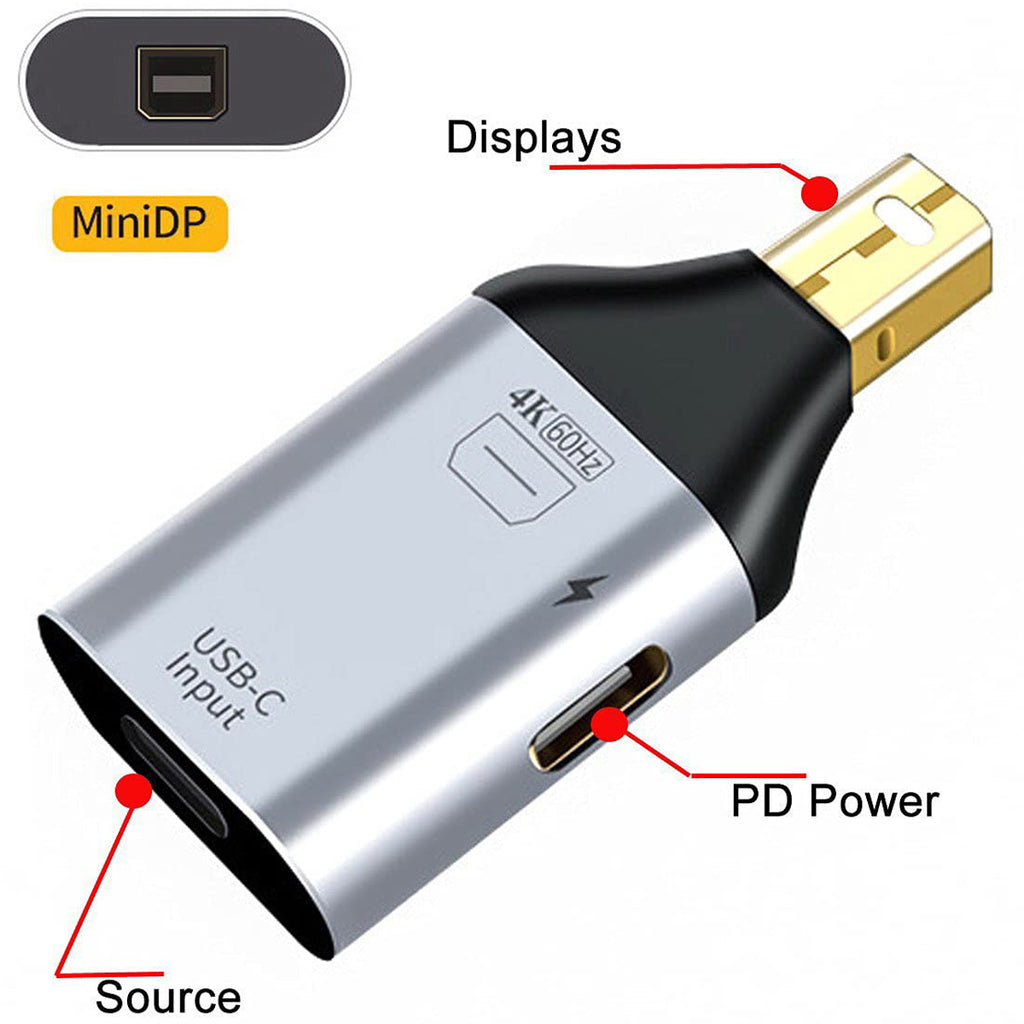

4. Side USB-C PD Power Port: The dedicated side USB-C port is for PD pass-through charging only (keeping your host device powered while projecting); it does not support data or video output.

Product Overview

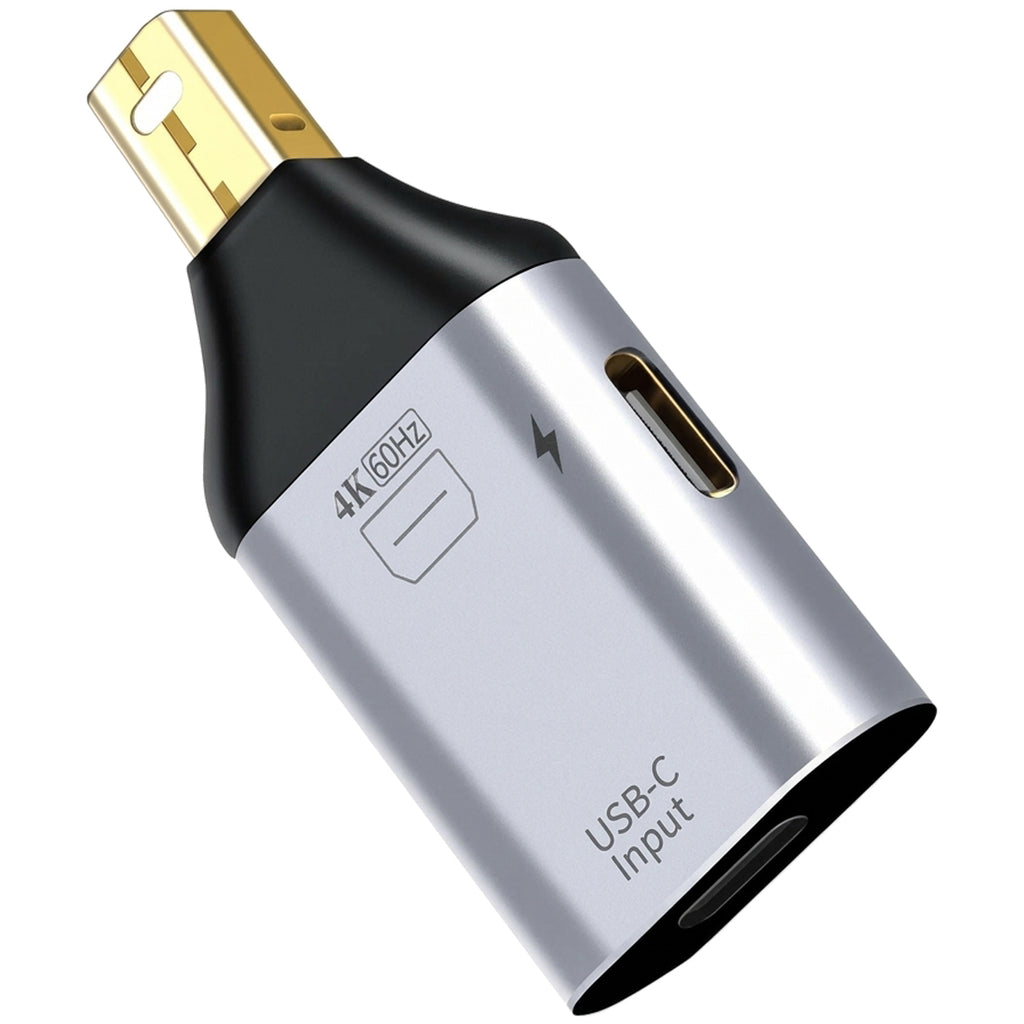

The USB-C Female to Mini DisplayPort Male Adapter lets you easily connect modern USB-C laptops, tablets, and smartphones to Mini DisplayPort displays, HDTVs, and projectors. Delivering ultra-crisp 4K resolution at a fluid 60Hz refresh rate, this adapter features a side-mounted USB-C Power Delivery (PD) port to keep your host device charged during presentations, movie streaming, and demanding multitasking.

Key Features

• UHD 4K@60Hz Video Output: Delivers sharp 3840x2160 resolution at a smooth 60Hz refresh rate, backward-compatible with 2K/1440p@60Hz and 1080p@60Hz displays.
• Pass-Through USB-C PD Fast Charging: Features an integrated side USB-C charging port that supplies continuous power to your connected laptop or phone while mirroring displays.
• Full-Featured DP Alt Mode Support: Compliant with DisplayPort Alternate Mode over USB 3.2, USB4, and Thunderbolt 3/4/5 ports for lag-free video and audio synchronization.
• Direct-Plug Mini DP Connector: Compact gold-plated Mini DisplayPort plug connects straight into your monitor or projector input port without cumbersome cable clutter.
• Premium Aluminum Alloy Housing: Sleek silver aluminum shell provides rapid heat dissipation and rugged durability for daily commuting and office presentations.

Compatible Devices

Compatible with full-featured USB-C host devices and standard Mini DisplayPort displays (note: list is not exhaustive):

• Host Source Devices (USB-C with DP Alt Mode): Mac Pro (2018–2026), MacBook Pro, MacBook Air, Dell XPS, Google Chromebook, Surface Pro, Surface Go, Huawei P40, Samsung Galaxy S8, and other laptops, tablets, and smartphones supporting DisplayPort Alternate Mode or Thunderbolt 3/4/5 / USB4
• Compatible Displays: Mini DisplayPort (Mini DP) monitors, Apple LED Cinema Displays (24-inch / 27-inch with Mini DP), HDTVs, and projectors with Mini DP inputs
• Not Compatible With: Apple Thunderbolt 1/2 Displays, Thunderbolt docks, or USB-C monitor displays

Common Daily Applications

• Connecting Laptops to Cinema Displays: Driving Apple LED Cinema Displays or Mini DP monitors from modern USB-C MacBook and Windows laptops with concurrent charging.
• Conference Room Presentations: Hooking up lightweight USB-C laptops or tablets directly to ceiling-mounted Mini DP projectors.
• Multi-Screen Productivity: Expanding desktop workspace to high-resolution external Mini DisplayPort monitors for video editing and coding.

Specifications

Frequently Asked Questions FAQ

Q: Can I connect my USB-C laptop or iPad to a Mini DisplayPort monitor or projector?
A: Yes. It converts the video signal from your USB-C host device (supporting DP Alt Mode) into a Mini DisplayPort output, allowing you to connect directly to Mini DP screens.

Q: Does this adapter support 4K 60Hz ultra-HD video resolution and pass-through PD charging?
A: Yes. It supports video resolutions up to 4K@60Hz (3840x2160), 1440p@60Hz, and 1080p@60Hz, while the side USB-C PD port lets you fast-charge your host device simultaneously.

Q: Do I need a full-featured 10Gbps USB-C cable to connect to the adapter?
A: Yes. Video transmission requires a full-featured USB-C to USB-C cable supporting at least 10Gbps data speed and DisplayPort Alternate Mode (charging-only cords cannot carry video).

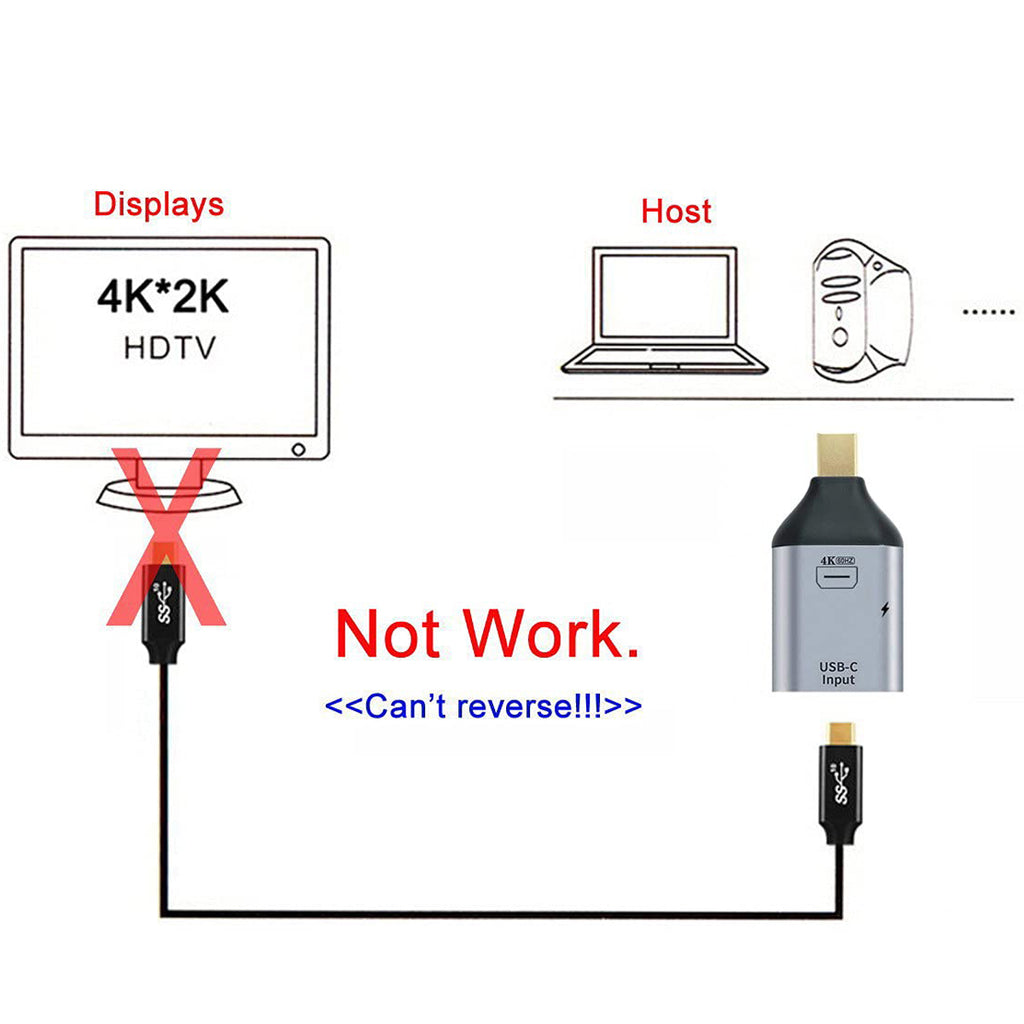

Q: Can I use this adapter in reverse to connect a computer with Mini DP output to a USB-C monitor?
A: No. This is a strictly uni-directional adapter (USB-C input to Mini DP output). Furthermore, it does not support Apple Thunderbolt 1/2 displays due to protocol differences.
