⚠️ Important Notice: Uni-Directional Signal, Full-Featured Cable & Host Requirements

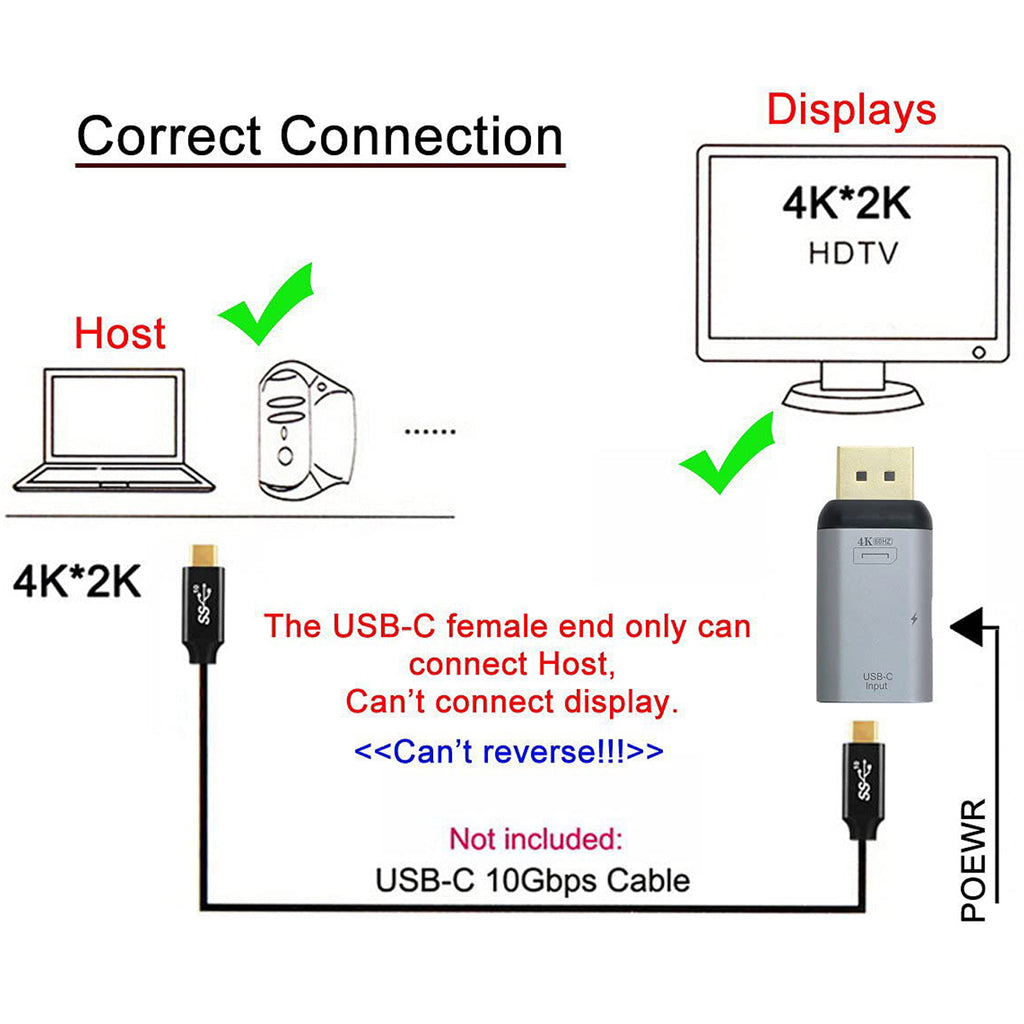

1. Uni-Directional Video Only: This adapter only functions from a USB-C source (laptop, tablet, smartphone) to a DisplayPort sink display (monitor, projector, HDTV). It does NOT work in reverse (cannot connect a DisplayPort PC host to a USB-C portable monitor).

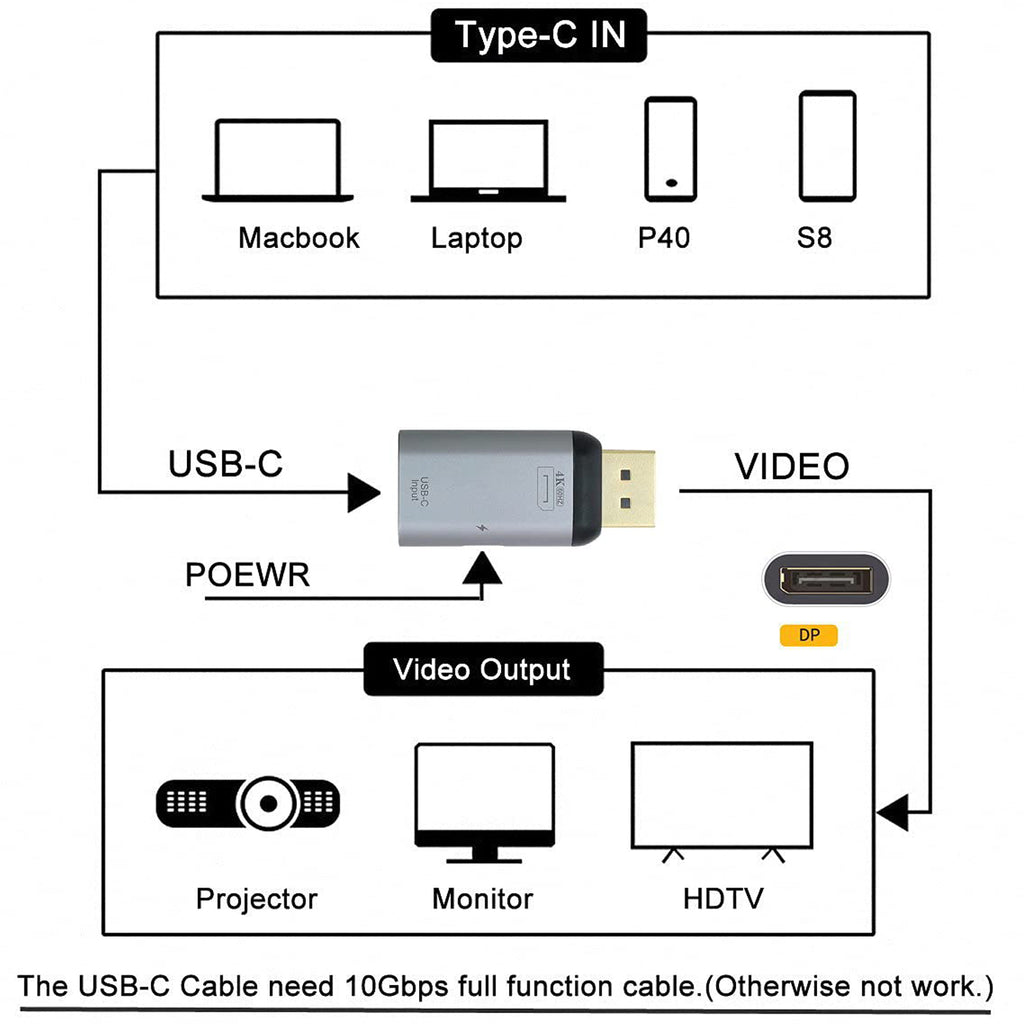

2. Requires Full-Featured USB-C Cable: Video output requires a 10Gbps USB-C to USB-C cable supporting DP Alt Mode (cable not included). Standard charge-only cables will not transmit video.
3. Host Video Support Required: Your source device's USB-C port must support DisplayPort Alternate Mode (DP Alt Mode), Thunderbolt 3, Thunderbolt 4, Thunderbolt 5, or USB4.

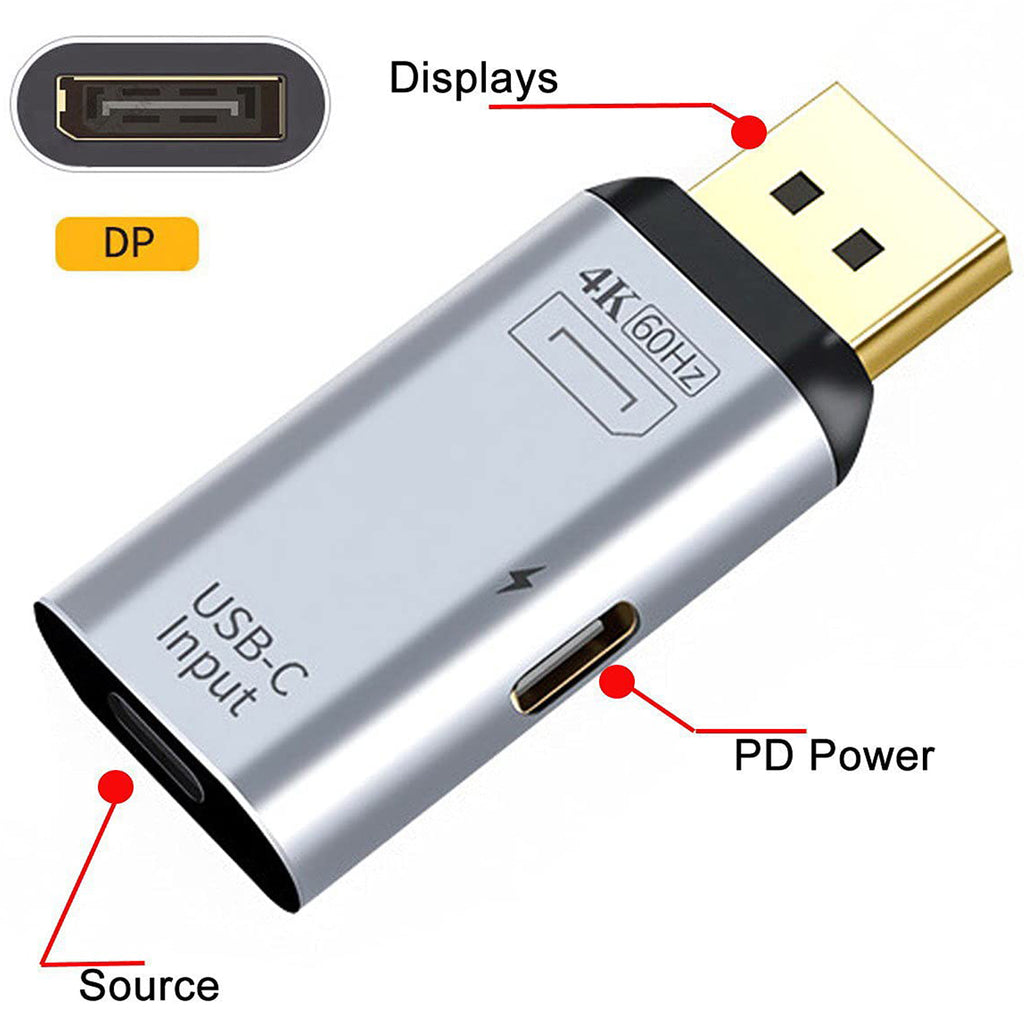

4. Dedicated PD Power Port: The side USB-C port is strictly for pass-through PD charging to power your host device; it does not transmit video or data.

Product Overview

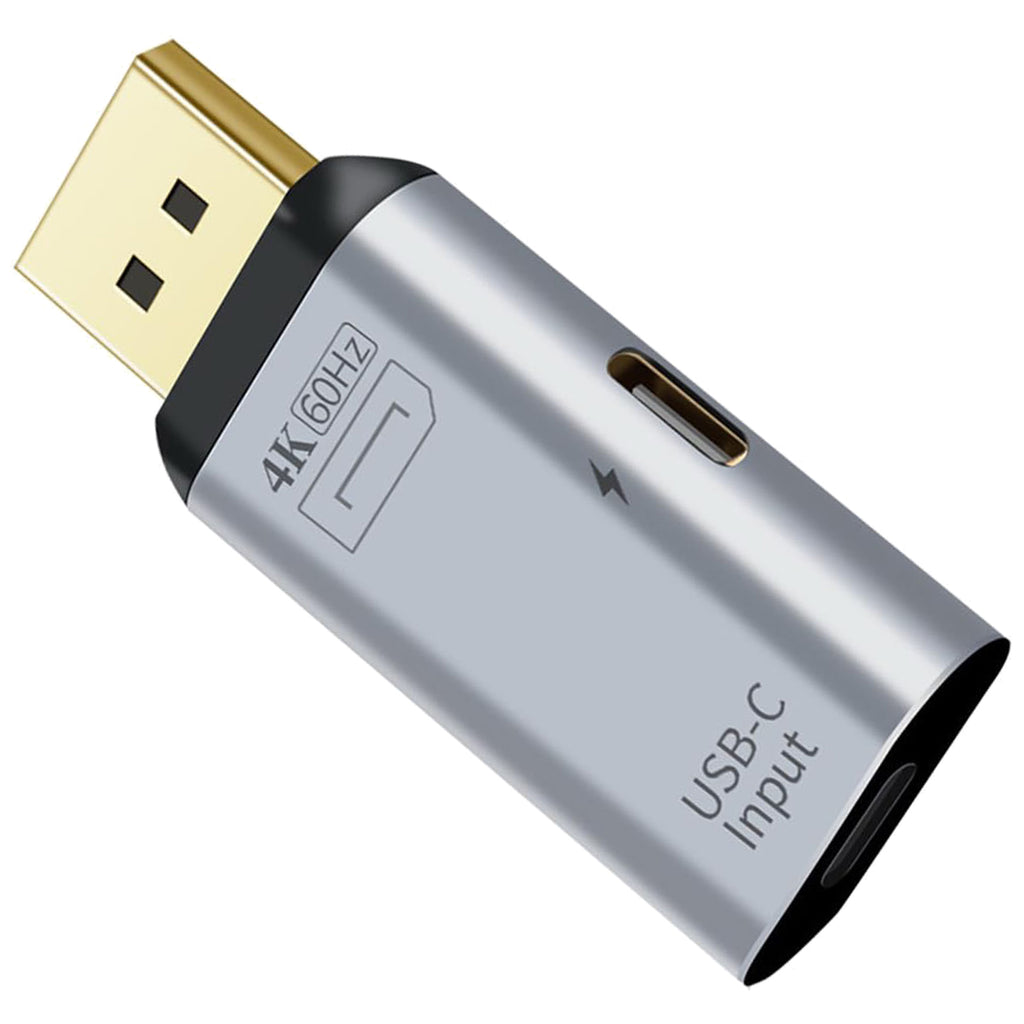

Upgrade your workstation connectivity with this compact USB-C Female to DisplayPort Male Adapter. Designed for high-performance video streaming, it bridges your modern USB-C laptops, tablets, and smartphones directly to standard DisplayPort monitors and projectors. Delivering ultra-sharp 4K Ultra HD resolution at a smooth 60Hz refresh rate, this adapter also features an integrated side USB-C Power Delivery port, ensuring your host device remains fully charged during demanding video presentations, extended desktop workflows, or immersive gaming sessions.

Key Features

• Ultra HD 4K@60Hz Visuals: Supports crisp resolutions up to 3840x2160 at 60Hz, backward compatible with 1440p@60Hz and 1080p@60Hz for fluid, tear-free video playback.
• Simultaneous PD Fast Charging: Equipped with an auxiliary USB-C PD power input port that keeps your host laptop or mobile device charged while driving the external display.
• DisplayPort Alternate Mode: Seamlessly routes native DisplayPort video and multi-channel digital audio over USB-C and Thunderbolt interfaces without driver installation.
• Durable Aluminum Alloy Enclosure: Premium metal housing provides superior heat dissipation and robust RF shielding for stable, interference-free transmission.
• Compact Travel-Friendly Design: Ultra-portable form factor easily slips into your laptop sleeve or pocket, making it an ideal companion for hot-desking, business trips, and classroom presentations.

Compatible Devices

Explicitly Supported Models:

• Apple: Mac Pro (2018–2026 models with USB-C/Thunderbolt)
• Dell: XPS series (with video-enabled USB-C ports)
• Google: Chromebook series (with USB-C video output)
• Microsoft: Surface Pro, Surface Go (with USB-C ports)
• Samsung: Galaxy S8, S8+, S9, S9+, S10, S10+, Note 8, Note 9, Note 10
• Huawei: Mate 10, Mate 10 Pro, Mate 20, Mate 20 Pro, P20, P20 Pro, P30, P30 Pro
• General Compatibility: Laptops, tablets, and smartphones equipped with USB-C ports supporting DP Alt Mode, Thunderbolt 3, Thunderbolt 4, Thunderbolt 5, or USB4.

Note: The compatible device list above represents verified models and is not exhaustive. Compatible with host devices supporting DP Alt Mode video output.

Common Daily Applications

• Workstation Dual-Display Setup: Connecting a USB-C ultrabook to a high-resolution DisplayPort desktop monitor for enhanced multitasking and productivity.
• Boardroom & Classroom Presentations: Hooking up modern laptops directly to commercial DisplayPort projectors for crisp slide decks and presentations.
• High-Refresh Gaming & Media: Enjoying smooth 4K@60Hz gameplay and streaming from compatible mobile phones and laptops onto large-screen DP TVs or monitors.
• Mobile Desktop Experience: Transforming compatible smartphones into desktop workstations while maintaining continuous charging via the side PD port.

Specifications

Frequently Asked Questions FAQ

Q: Yes, does this adapter support 4K resolution at a 60Hz refresh rate?
A: Yes. When connected between a host device supporting DP Alt Mode and a 4K DisplayPort monitor with a 10Gbps full-featured USB-C cable, it delivers native 4K (3840x2160) video at 60Hz.

Q: Yes, can I charge my laptop while transmitting video through the adapter?
A: Yes. The built-in side USB-C PD port allows you to connect your standard USB-C charger, delivering pass-through power to your laptop or phone while simultaneously outputting video to your monitor.

Q: Yes, does this adapter work with Thunderbolt 3, Thunderbolt 4, and USB4 ports?
A: Yes. It is fully backward compatible with Thunderbolt 3, Thunderbolt 4, Thunderbolt 5, and USB4 ports on modern PCs and laptops that carry DisplayPort video signals.

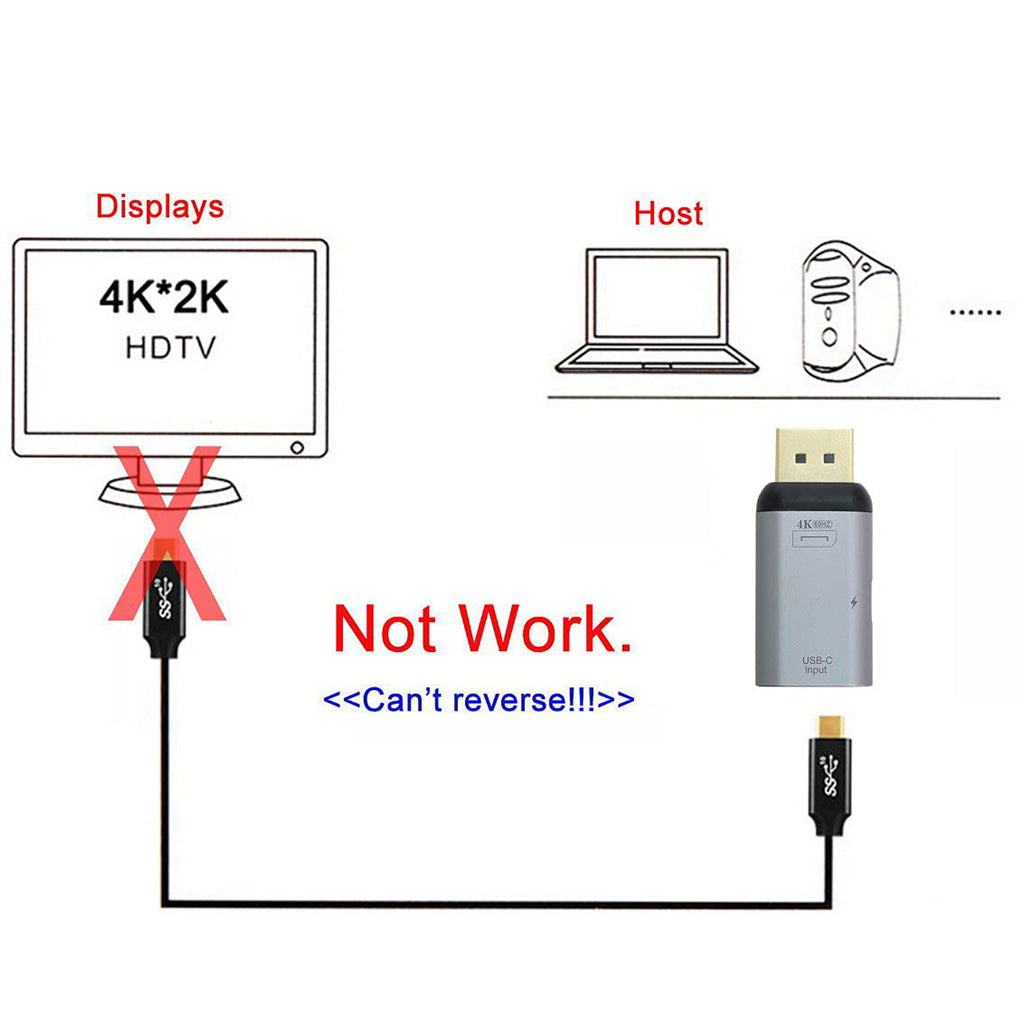

Q: Can I use this adapter in reverse to connect a desktop DisplayPort output to a USB-C portable monitor?
A: No. This adapter is strictly uni-directional. It only converts video from a USB-C host to a DisplayPort display. It cannot receive a video signal from a DP source to output to a USB-C screen.

Q: Yes, does this adapter transmit audio along with video to DisplayPort displays?
A: Yes. It transmits multi-channel digital audio alongside high-definition video to monitors and TVs equipped with integrated speakers or audio outputs.
