⚠️ Important Notice: Soldering Required & 3-Pole TRS Wiring Configuration

1. Soldering Equipment Required: This is a bare component plug designed for DIY repair and custom cable building. Soldering with a soldering iron and solder wire is required to attach the conductors. It is not a tool-free or screw-on terminal plug.
2. TRS 3-Pole Stereo Only (No Mic): Features three electrical contact terminals: Tip (Left Channel), Ring (Right Channel), and Sleeve (Ground/Shield). It does NOT support microphone or inline remote functions (not for 4-pole TRRS gaming headsets).

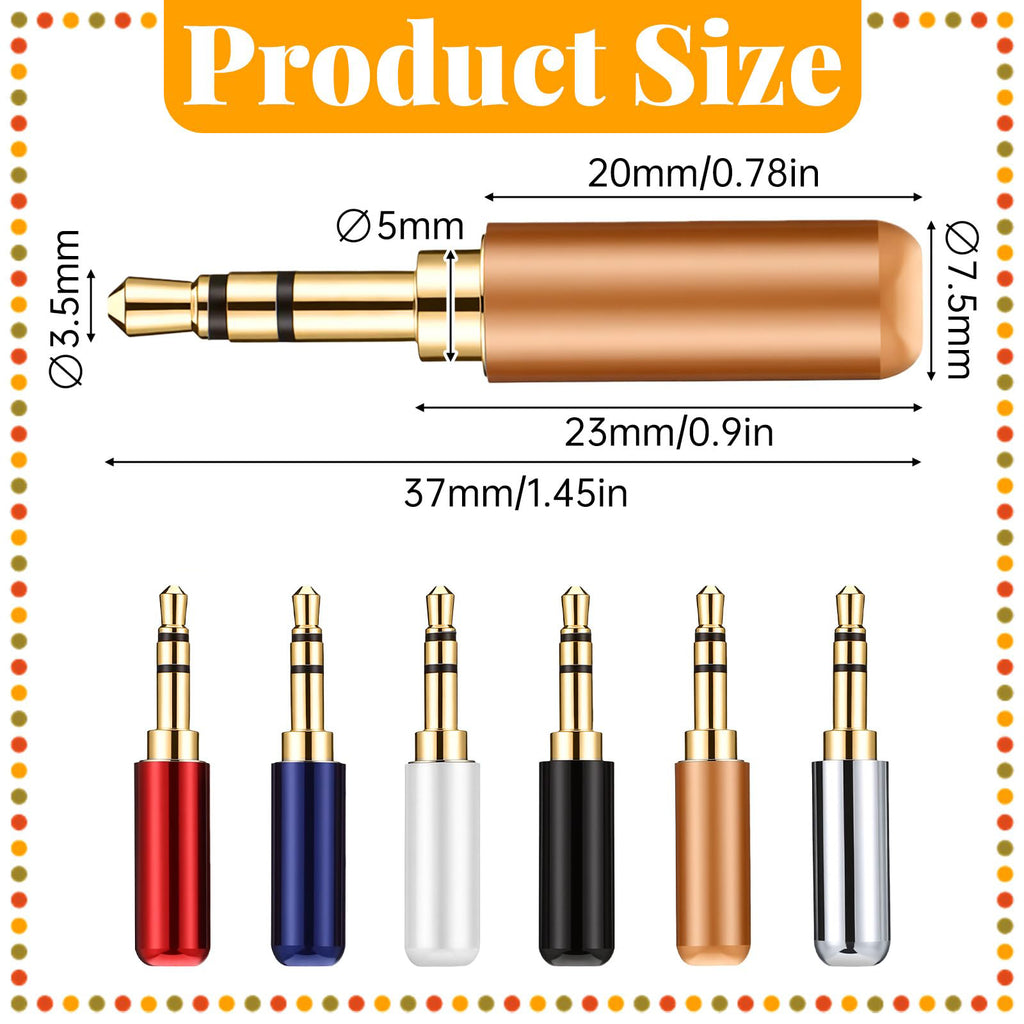

3. Cable Wire Diameter Limit: The rear shell opening accommodates audio cables with an outer diameter up to 5mm (0.2 in).

Product Overview

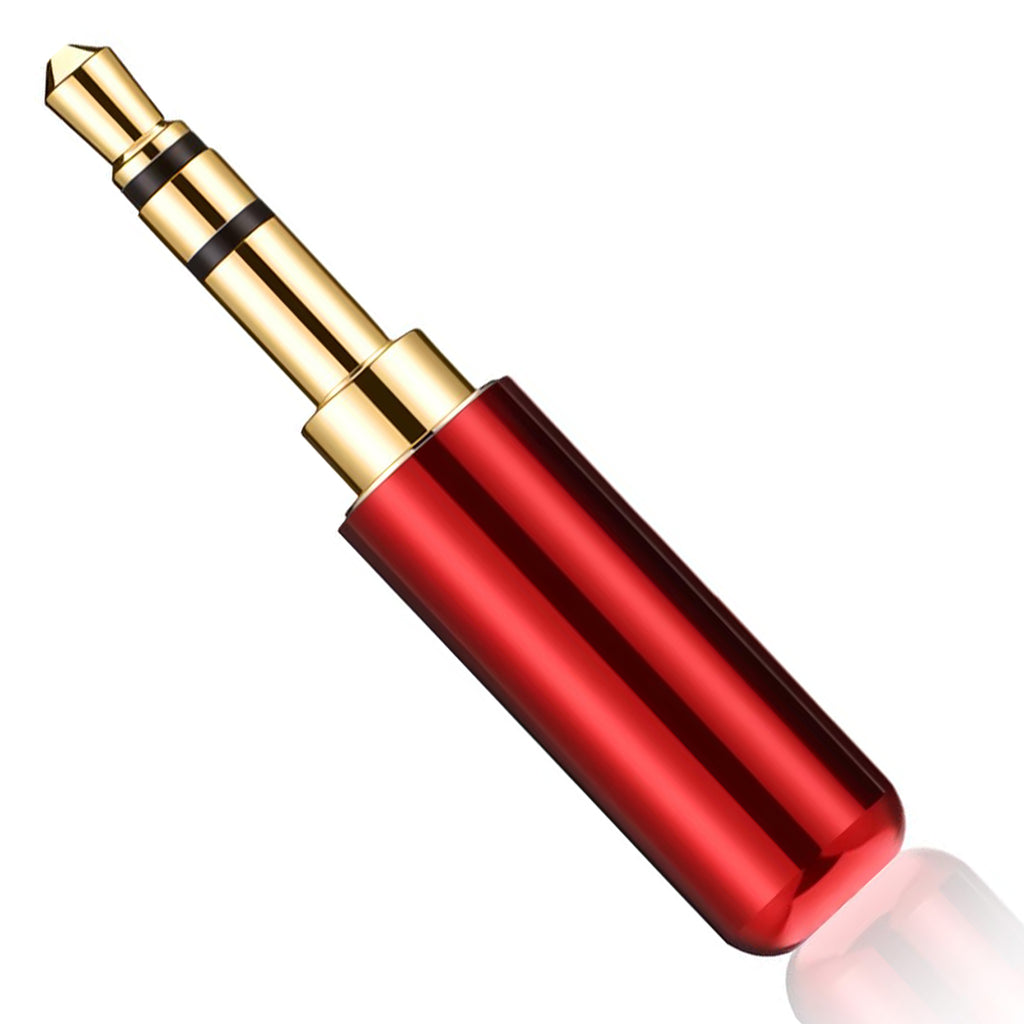

Repair worn-out headphone cables or build custom high-fidelity audio interconnects with this professional 3.5mm (1/8 inch) TRS 3-pole male solder audio plug. Engineered with corrosion-resistant 24K gold-plated contacts and an all-metal anodized aluminum housing, this solder-type connector delivers exceptional electrical conductivity and mechanical strain relief. Featuring clearly accessible solder tabs for left channel, right channel, and ground wire shielding, it provides a dependable, audiophile-grade replacement jack for DIY studio enthusiasts and everyday headphone repairs.

Key Features

• 3-Pole TRS Stereo Architecture: Designed for standard stereo audio transmission with dedicated solder eyelets for Left Channel (Tip), Right Channel (Ring), and Ground (Sleeve).
• 24K Gold-Plated Brass Contacts: Pure copper construction with thick 24K gold plating prevents surface oxidation and preserves clean audio frequency response.

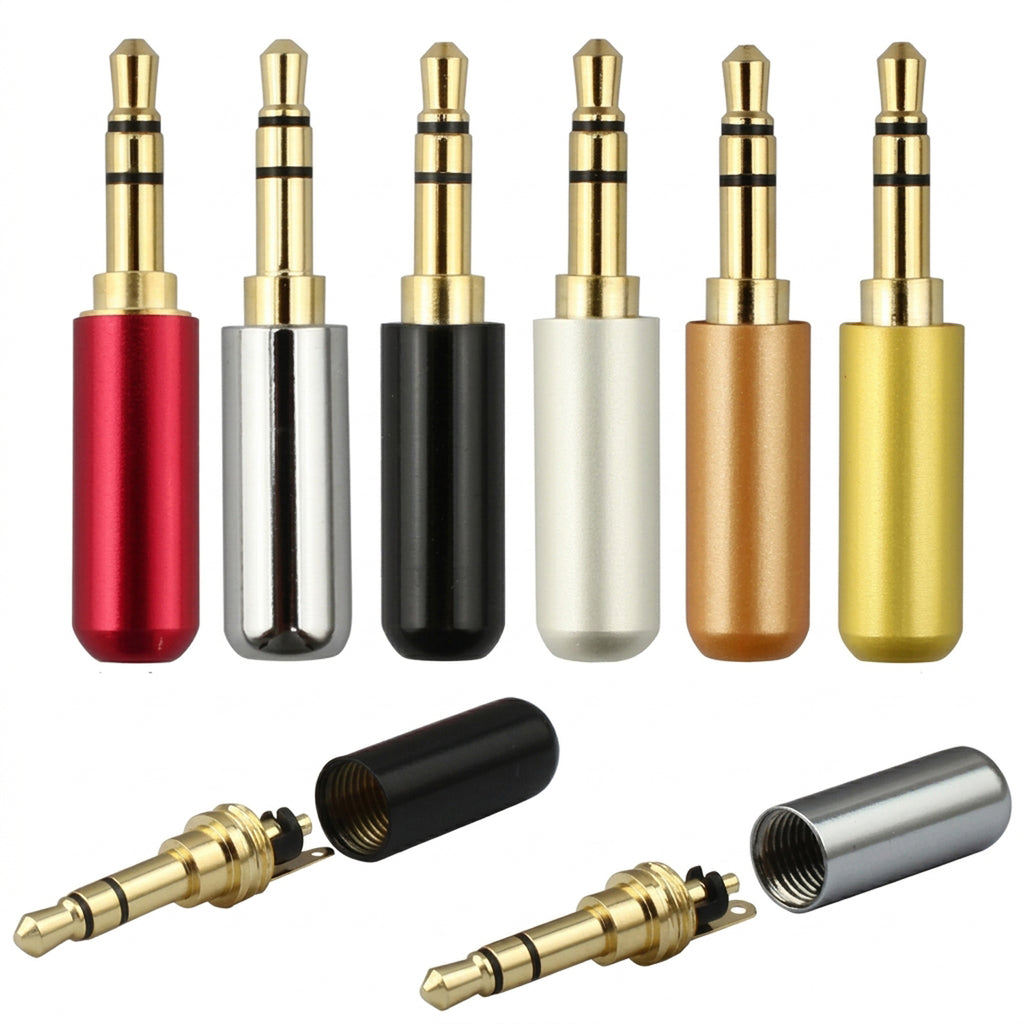

• Durable Threaded Metal Housing: Robust metal shell protects internal soldered joints from bending tension and impact, screwing securely onto the connector core.
• Generous 5mm Cable Entry: Accommodates a wide variety of replacement headphone cords and braided aux cables up to 5mm in diameter.

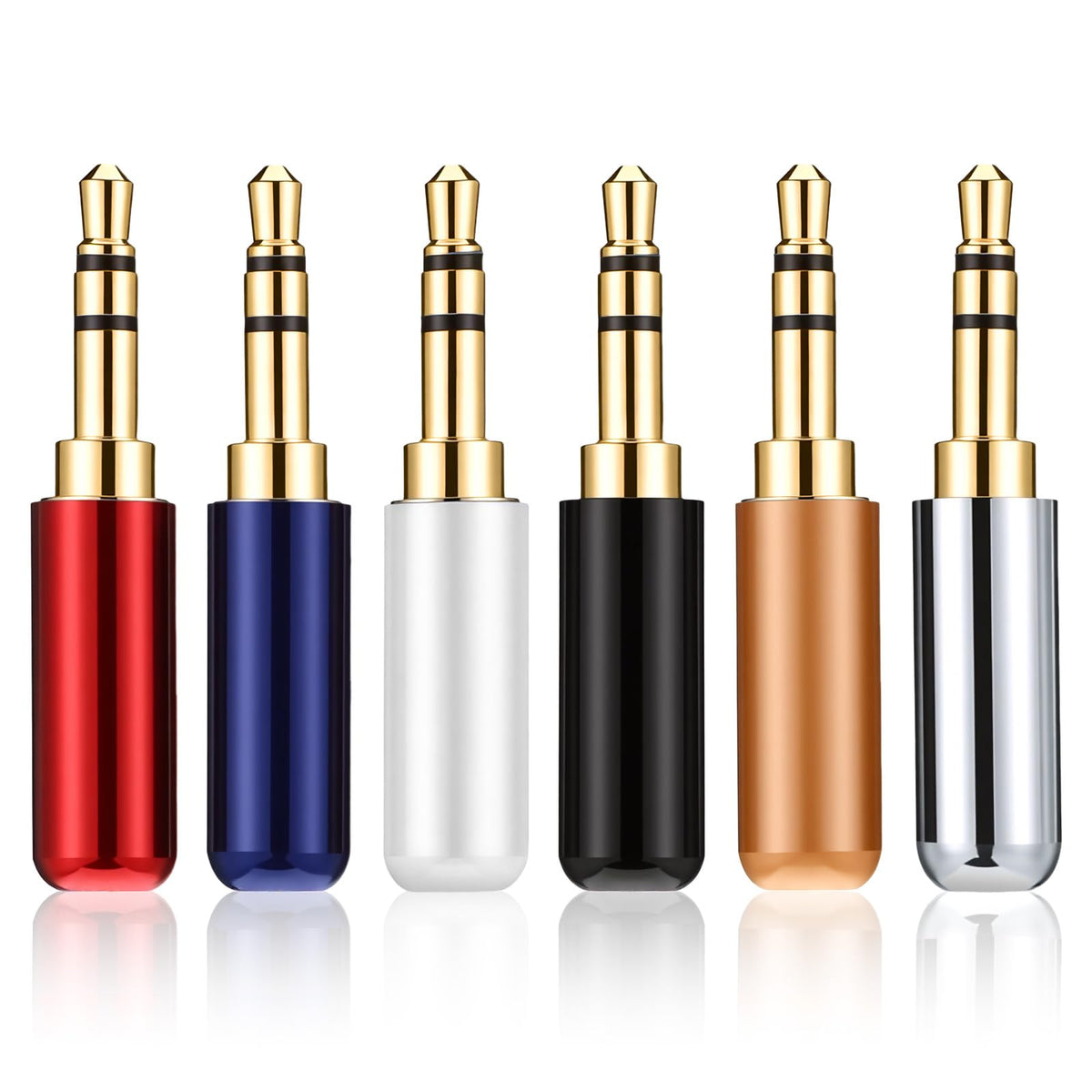

• Available in Multiple Anodized Colors: Select from vibrant anodized metal shells (Red, Silver, Black, Blue, Rose Gold, Orange) for color-coded audio channels or personalized style.

Compatible Devices

Verified compatible for repairing and assembling cables for:

• Audio Gear: Over-ear headphones, on-ear headsets, studio monitors, earphones, and custom stereo aux cables
• Audio Jacks: Any standard 3.5mm (1/8 inch) stereo TRS audio socket on PCs, laptops, audio mixers, guitar amps, speakers, and media players

Note: This compatibility list covers verified hardware and is not exhaustive; suitable for all 3.5mm TRS stereo audio applications.

Common Daily Applications

• Headphone Jack Replacement: Cut off damaged or frayed headphone plugs and solder this durable connector to restore expensive headphones.
• Custom Aux Cable Assembly: Craft tailor-made 3.5mm stereo interconnect cables with high-purity bulk audio wire.
• Studio Cable Maintenance: Keep backup audio solder connectors in recording studios, live sound kits, and repair benches.
• Color-Coded Channel Identification: Use different colored shells to distinguish left/right stereo feeds or specialized audio patch routes.

Specifications

Frequently Asked Questions FAQ

Q: Does this plug support microphone functionality on phone headsets?
A: No. This is a 3-pole TRS connector meant for stereo audio playback only. Headsets with built-in microphones require a 4-pole TRRS connector.

Q: Can I install this without a soldering iron?
A: No. Secure electrical connection requires stripping the wires, soldering them to the corresponding solder tabs (Left, Right, Ground), and tightening the shell.

Q: What is the maximum wire thickness this plug can accept?
A: The tail opening accommodates cables with an outer diameter of up to 5mm.

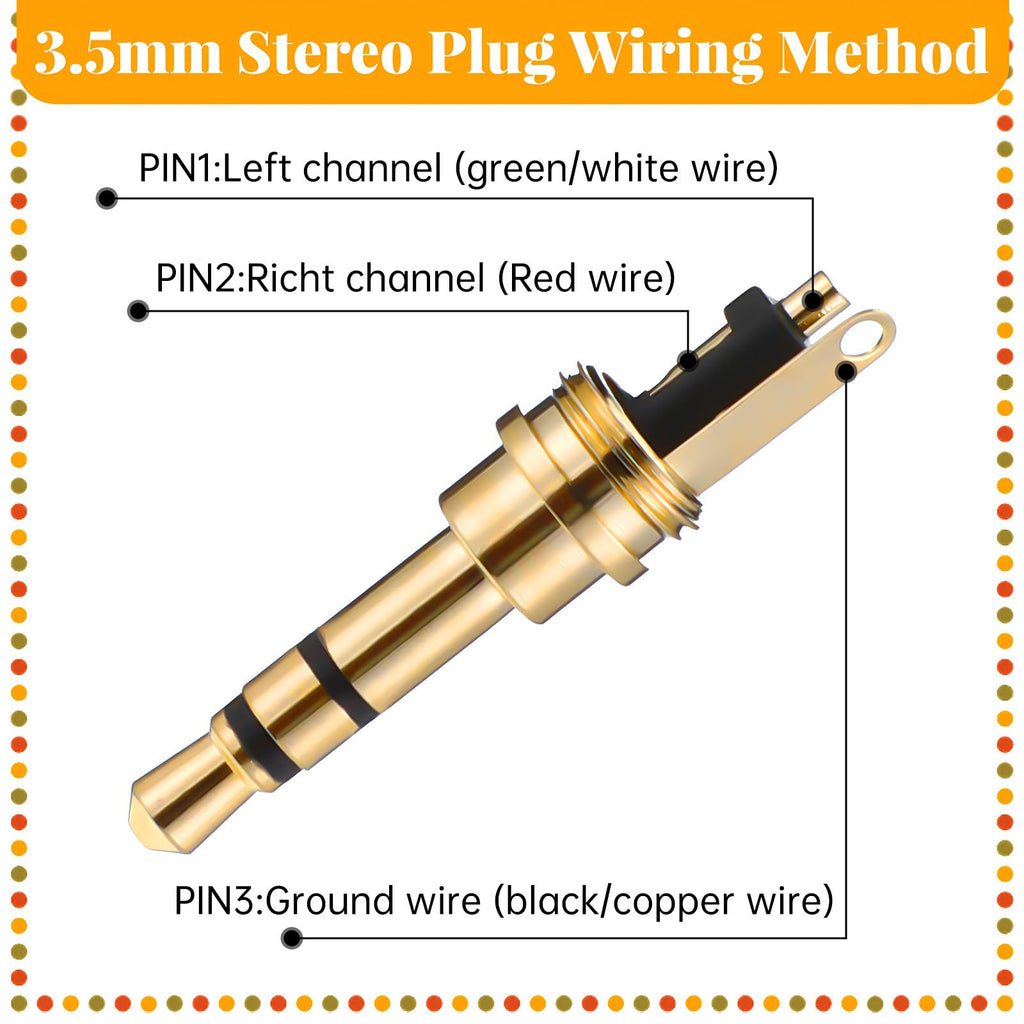

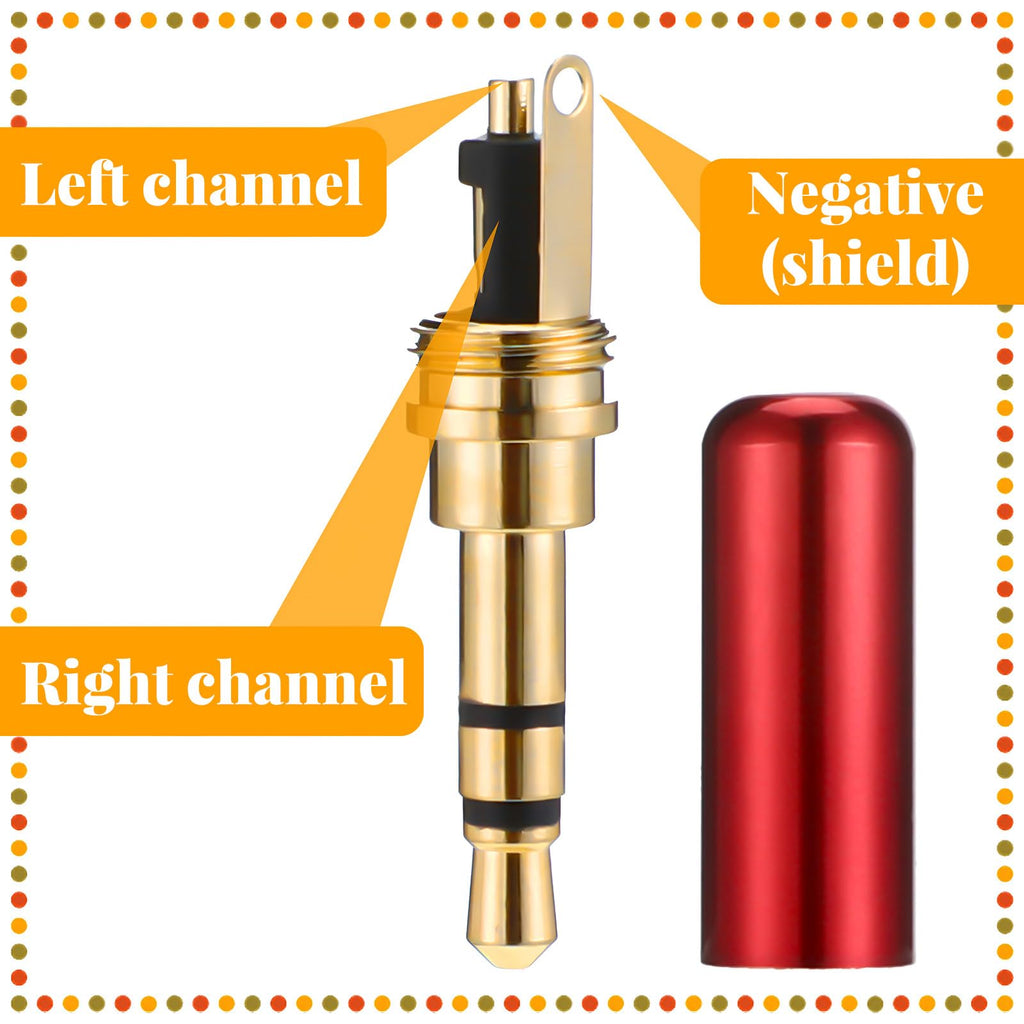

Q: What do the soldering terminals correspond to?
A: The short center tab connects to the Left Channel (Tip), the intermediate tab connects to the Right Channel (Ring), and the long outer bracket connects to the Ground / Shield (Sleeve).
