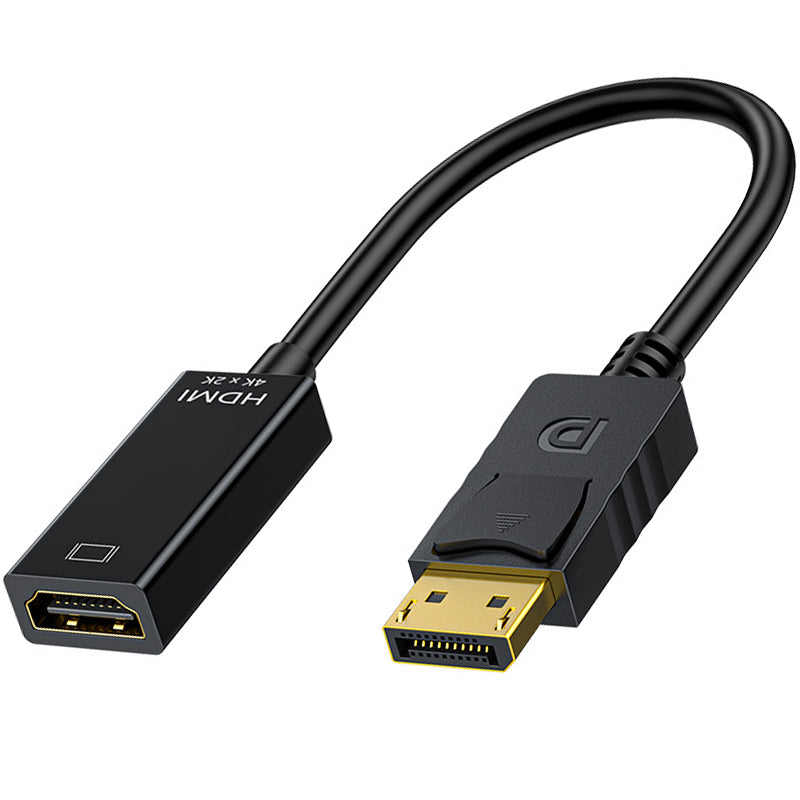

DisplayPort to HDMI Adapter 4K 30Hz Passive

DisplayPort to HDMI Adapter 4K 30Hz DP Male to HDMI Female Passive Converter for MacBook Pro Air Mac mini Surface Pro 3 4

$0.83

Important Notice

This adapter has a standard-size DisplayPort male plug and an HDMI female socket. It is not a Mini DisplayPort adapter. Check your source device's actual port before ordering.

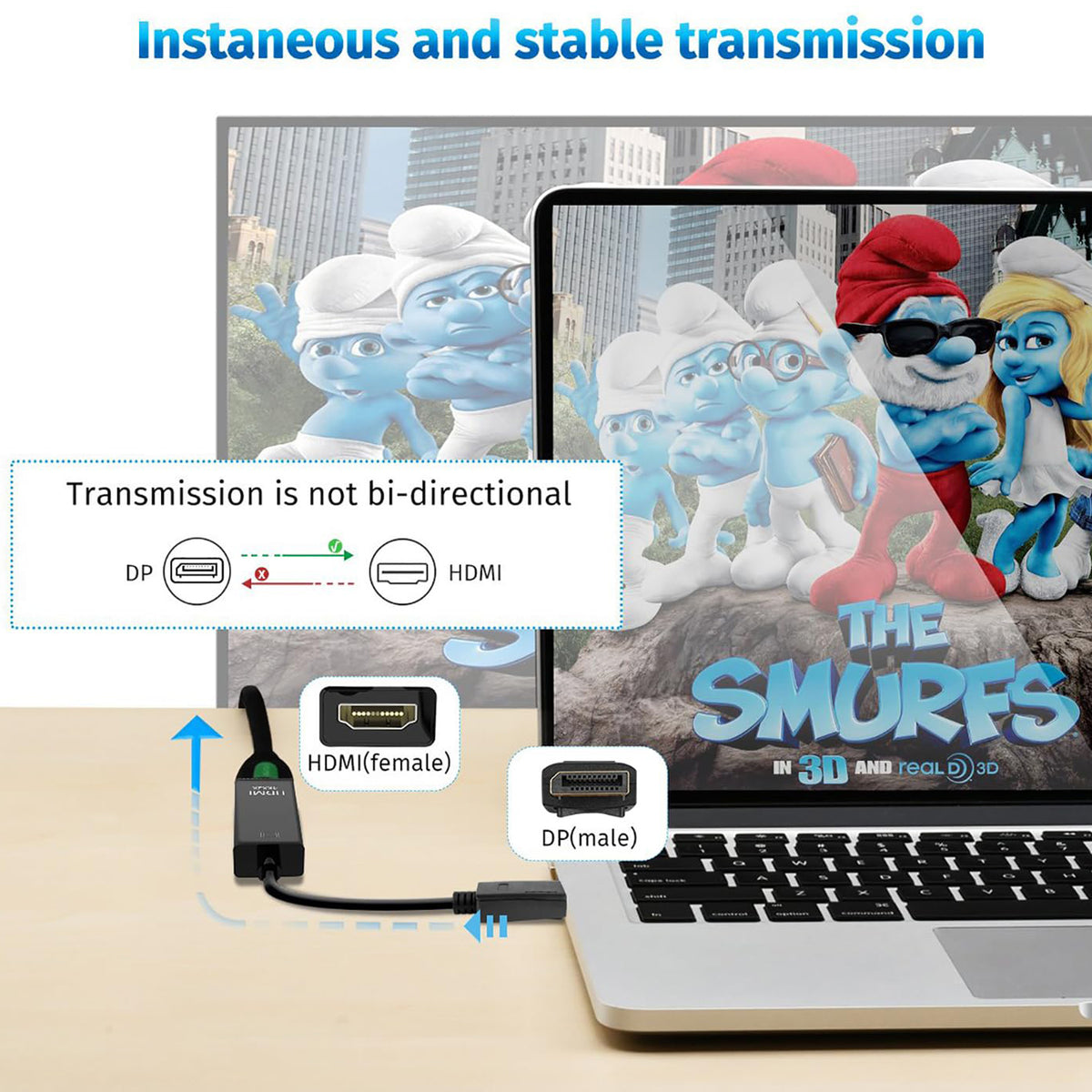

One-way only: connect a DisplayPort video source to an HDMI display through an HDMI cable. It does not convert an HDMI source to a DisplayPort display and does not connect to a USB port.
This is a passive adapter. Check that the DisplayPort source or dock supports DP++ (dual-mode DisplayPort). Some docks may require an active converter instead.
Supports up to 3840 × 2160 at 30Hz or 1920 × 1080 at 60Hz with compatible equipment. Actual output depends on your source, display and connection.
Do not rely on device names alone to determine fit. Check for a standard-size DisplayPort output and DP++ support before purchase; a Mini DisplayPort port is not a direct fit.

Product Overview

Connect a compatible standard DisplayPort computer or video source to an HDMI monitor, TV or projector. The DisplayPort male plug goes into the source, while the HDMI female socket accepts an HDMI cable leading to the display (HDMI cable not specified as included). A compact adapter is handy for a presentation or an additional display when the required ports and functions match.

Key Features

Standard DisplayPort male to HDMI female, one-way video conversion from DP source to HDMI display.
Passive design for compatible DP++ sources; not a reverse-direction or USB video adapter.
Maximum resolutions include 4K (3840 × 2160) at 30Hz and 1080p (1920 × 1080) at 60Hz. Other supported resolutions include 720p, 1600 × 1200 and 1280 × 1024, depending on equipment.
Audio output and plug-and-play use require a compatible source and display.

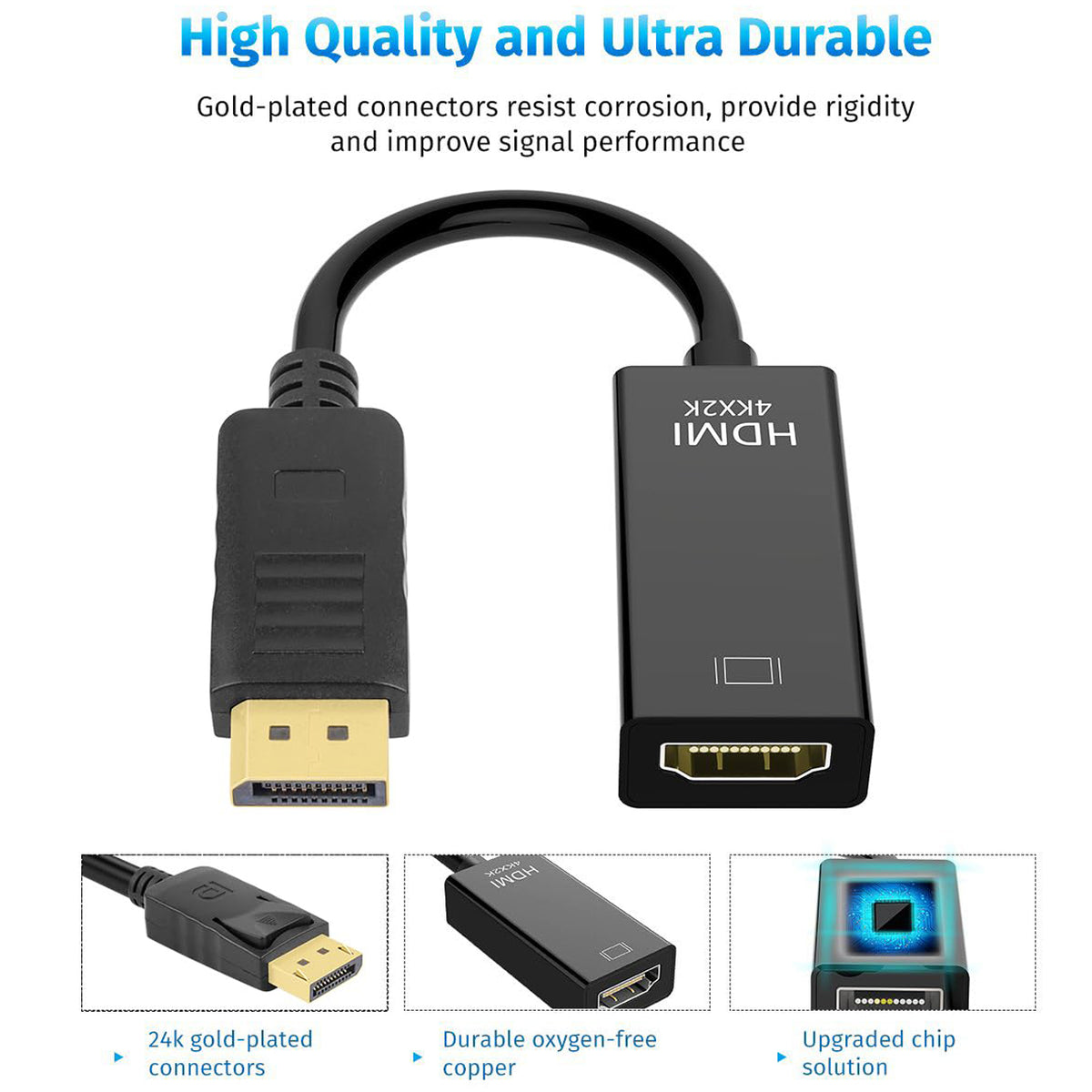

Gold-plated DisplayPort connector and latch with release button; press the button before unplugging.

Device Compatibility

Use with a source device that has a standard-size DisplayPort output with DP++ support and an HDMI display. A device with only a Mini DisplayPort, USB-C or HDMI output will not directly accept this standard DisplayPort male plug. Verify the exact port and output support on your device before ordering.

Common Daily Applications

Connect a compatible DisplayPort-equipped computer to an HDMI monitor for a desktop setup, an HDMI projector for a presentation, or an HDMI TV for supported video playback.

Specifications

Feature	Details
Input from video source	Standard DisplayPort male
Output to display	HDMI female
Direction and type	DisplayPort source to HDMI display only; passive adapter requiring compatible DP++ source
Maximum resolution	3840 × 2160 at 30Hz; actual output depends on connected equipment
Other resolutions	1920 × 1080 at 60Hz; 720p, 1600 × 1200 and 1280 × 1024 depending on equipment
Audio support	Requires compatible source and display
Color choices	Black or White, select the variant

FAQ

1. Is this for a Mini DisplayPort port? No. The input plug is standard-size DisplayPort male. Compare your device port before ordering.

2. Can I use it from an HDMI computer to a DisplayPort monitor? No. It only works from a compatible DisplayPort source to an HDMI display.

3. Will it work with any DisplayPort dock? Not necessarily. This passive adapter requires a compatible DP++ output; some docks need an active adapter.
