⚠️ Important Notice: Resolution Limits, HDCP & Audio Configuration

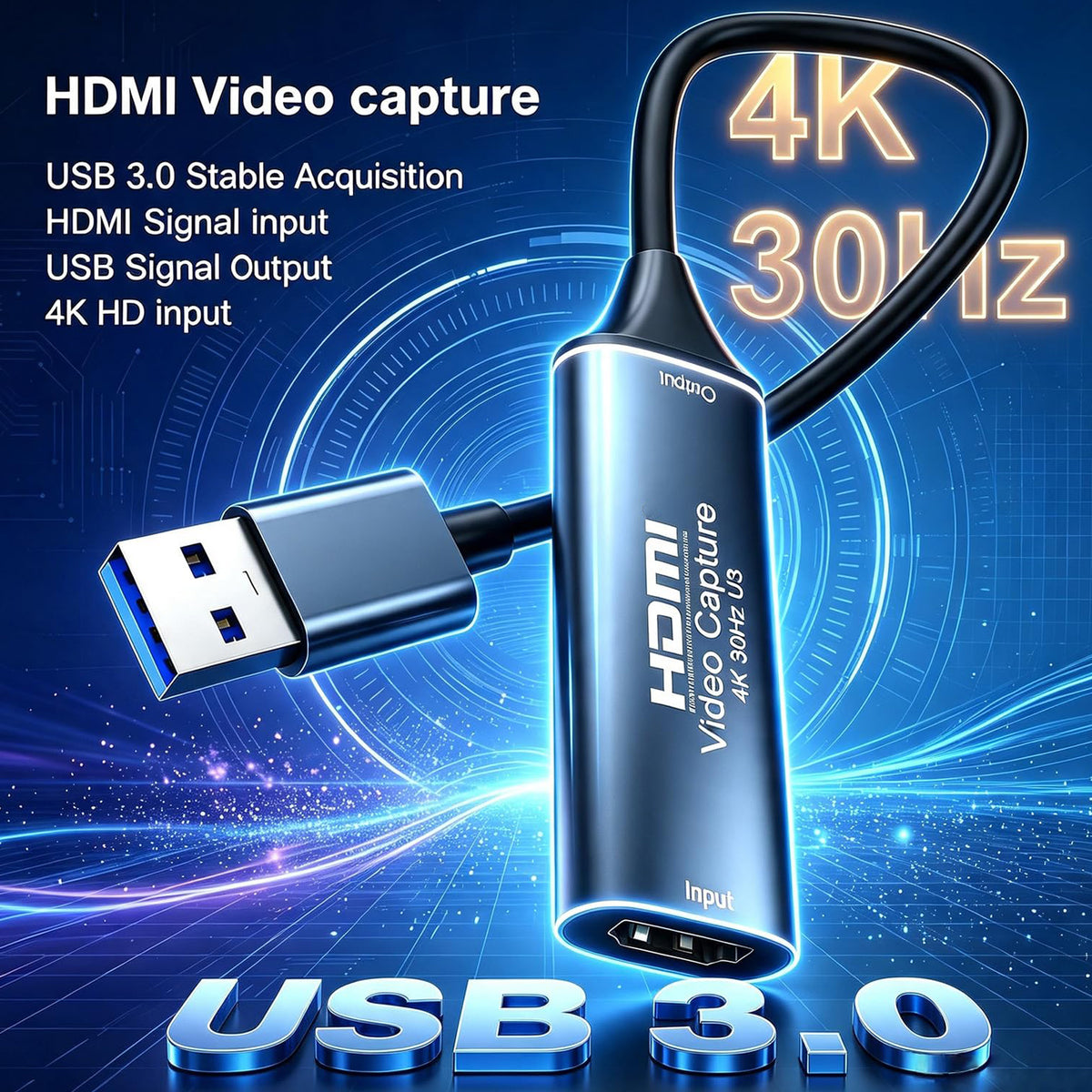

1. Input vs Capture Resolution (1080P@60Hz Output): This device accepts an HDMI input signal up to 4K @ 30Hz (3840x2160), while the maximum video recording and live streaming output over USB is 1080P @ 60Hz Full HD (1920x1080). It does not output 4K video to your computer.
2. HDCP Must Be Disabled on Consoles: When capturing gameplay from PlayStation 5 (PS5), PlayStation 4 (PS4), or Xbox, you must navigate to your console's system settings and turn OFF HDCP. Video capture software will display a black screen if HDCP encryption is active.
3. No HDMI Pass-Through (Loop-Out): This compact capture dongle features one HDMI input and one USB output. It does not have an additional HDMI passthrough port for zero-latency TV viewing; gameplay preview must be monitored via your computer streaming software.
4. OBS Audio Configuration: In OBS Studio or similar streaming software, configure the audio device capture properties to "Capture audio only" or "Output desktop audio (WaveOut)". If audio is not detected upon first launch, restart OBS Studio with the device connected.

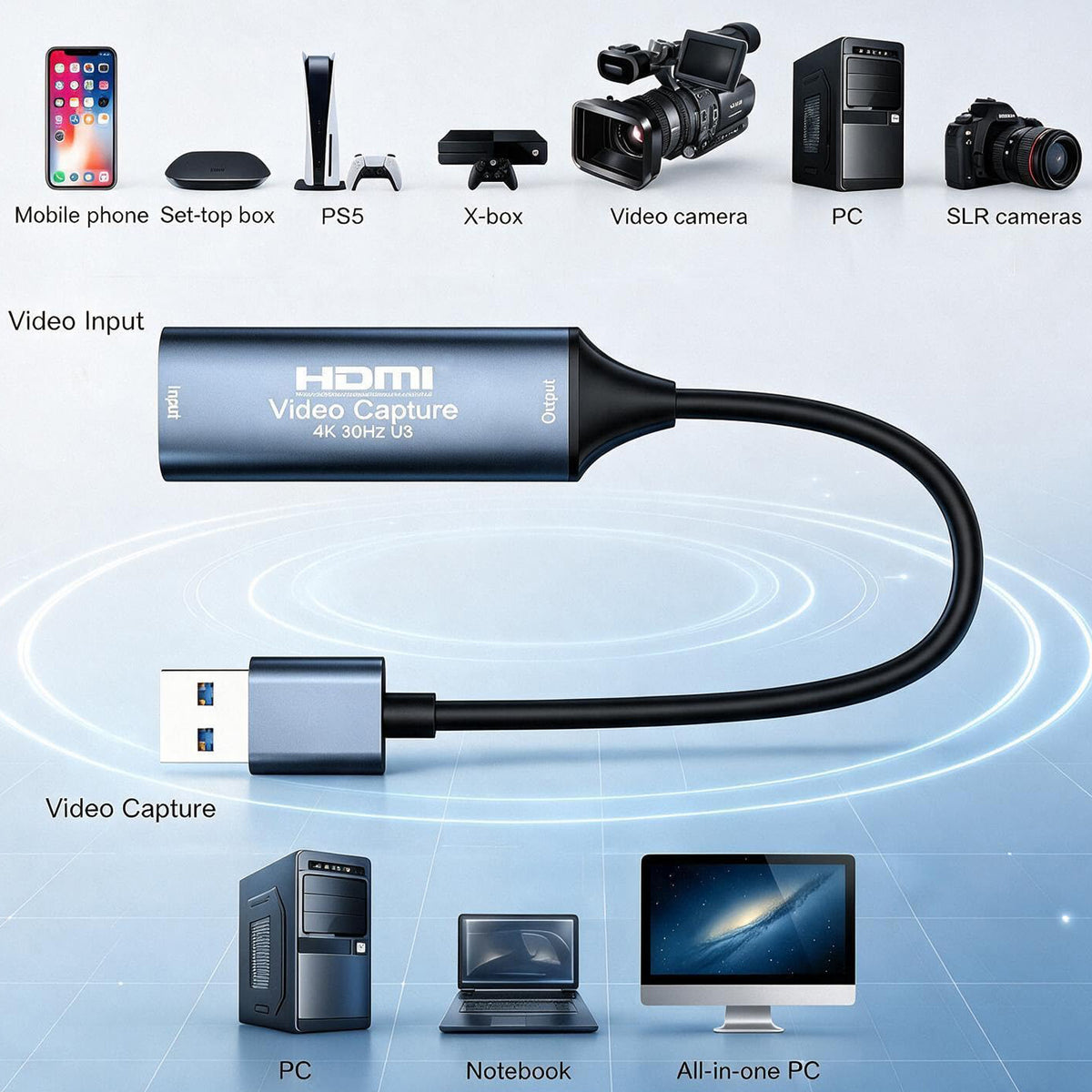

5. Unidirectional Capture Only: Functions strictly from an HDMI source device (camera, game console, TV box) to a host computer USB port. It cannot function as a USB-to-HDMI display adapter to connect an extra monitor.

Product Overview

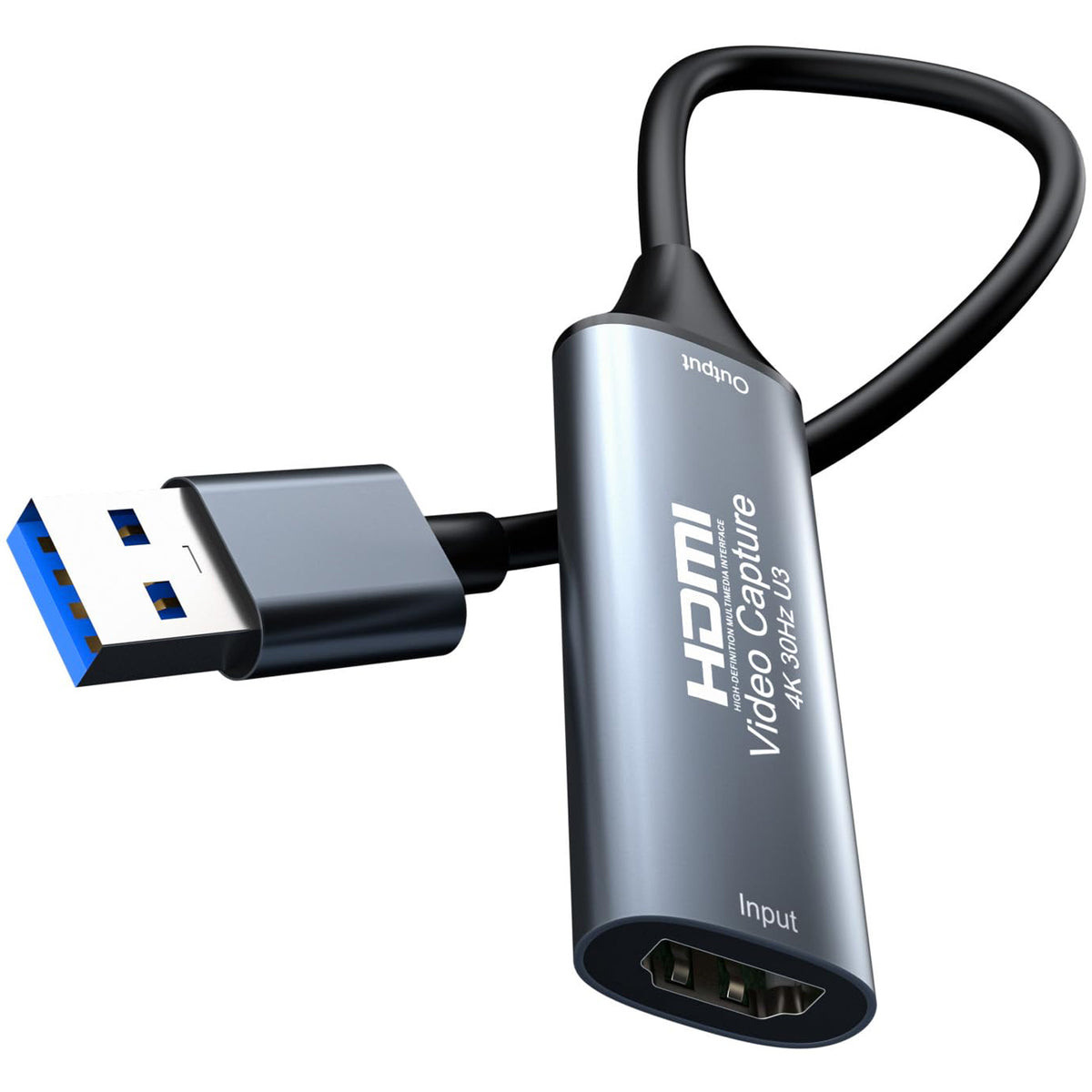

The 4K 30Hz HDMI to USB 3.0 Video Capture Card provides a high-performance, driver-free solution for live streaming, gaming broadcast, and professional video production. Featuring an integrated low-latency processing chip and an aluminum-alloy housing, this cam link dongle captures HDMI video from DSLR cameras, camcorders, and gaming consoles at up to 1080P @ 60Hz with synchronized stereo audio directly into your PC or Mac.

Key Features

• Crisp 1080P@60Hz Capture: Accepts 4K @ 30Hz HDMI video sources and outputs smooth, true-color 1080P @ 60Hz Full HD video for high-framerate streaming and pristine recordings.
• Ultra-Low Latency Preview: Advanced hardware encoding chipset delivers near-instant real-time monitoring through your streaming canvas without lag or dropped frames.
• Driver-Free Plug and Play: Standard UVC (USB Video Class) and UAC (USB Audio Class) compliance allows immediate use across Windows, macOS, and Linux without manual driver installation.

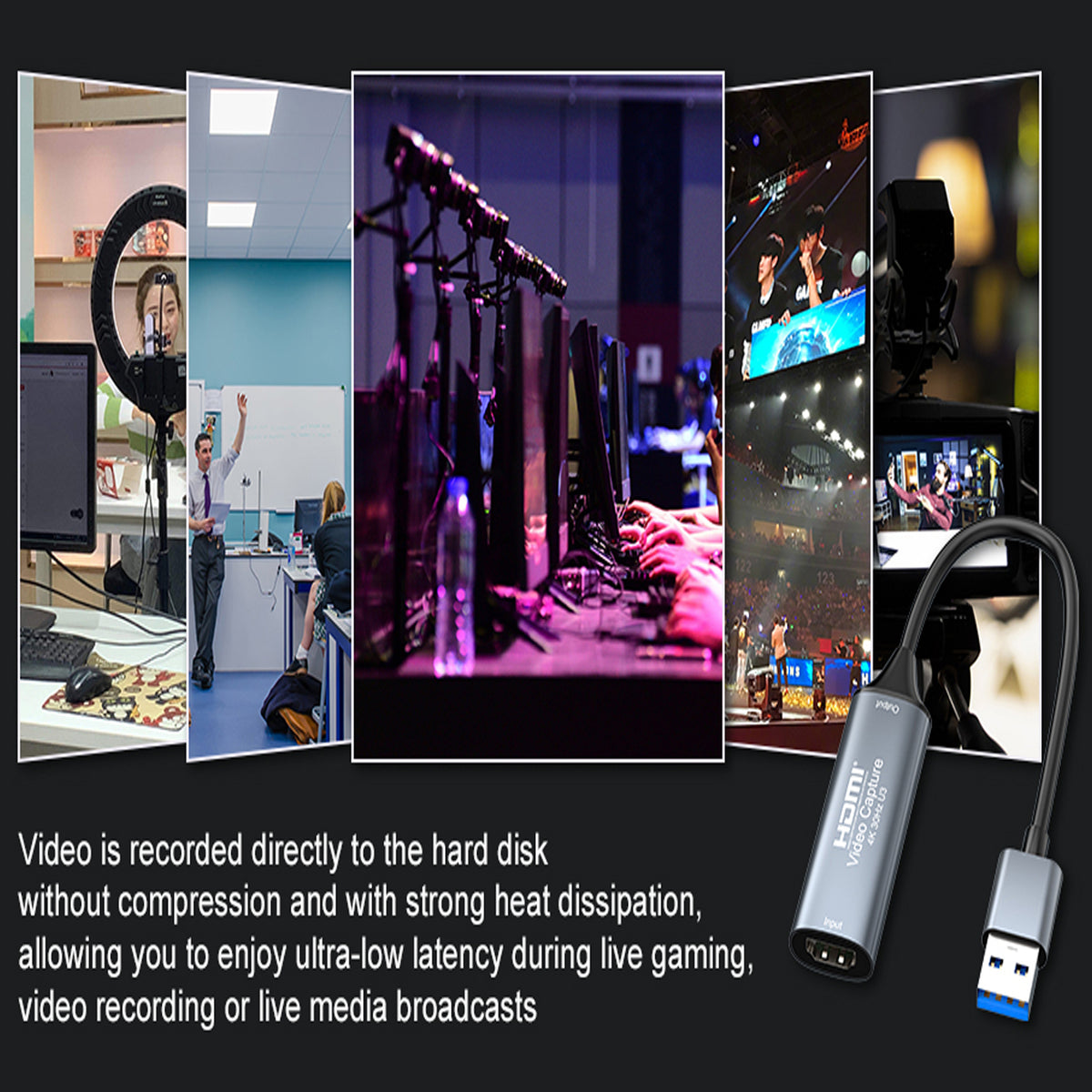

• Efficient Heat-Dissipating Aluminum Shell: Sturdy aluminum-alloy body promotes continuous thermal dissipation, preventing thermal throttling during marathon streaming sessions.
• Integrated Flexible Cable Design: Short built-in cable reduces mechanical strain on your computer USB ports compared to rigid dongles.

Compatible Devices

Compatible with standard HDMI video sources and USB-equipped computers, including:

• HDMI Source Devices: DSLR cameras, SLR cameras, camcorders, PS5, PS4, Nintendo Switch, Xbox, set-top boxes, and gaming consoles.
• Host Operating Systems: Windows, macOS, and Linux systems.
• Streaming Software & Platforms: OBS Studio, Streamlabs, Wirecast, VLC; broadcasts to Twitch, YouTube, Facebook Live, and TikTok.

Note: Listed devices and software are functional reference examples; this list is not exhaustive. Devices with standard HDMI output and computers with USB ports are functionally supported.

Common Daily Applications

• Transforming a DSLR or mirrorless camera into a studio-grade 1080P webcam for Zoom meetings, online webinars, and remote teaching.

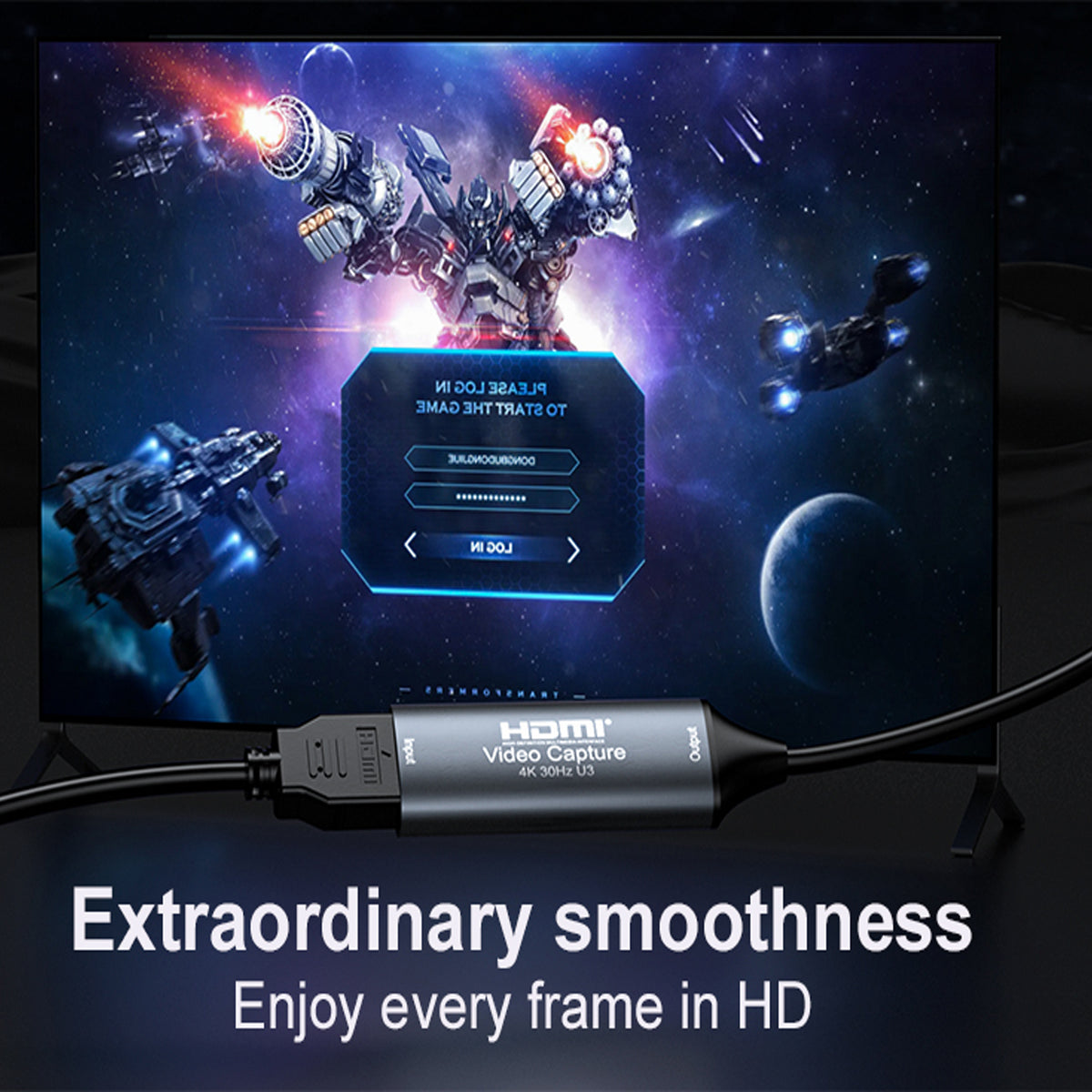

• Broadcasting console gameplay from a PS5, Switch, or Xbox to Twitch and YouTube via OBS Studio.
• Recording high-definition medical imaging, microscope feeds, or boardroom presentations directly to a local hard drive.

Specifications

Frequently Asked Questions FAQ

Q: Why does my streaming software show a black screen when connected to my PS5 or PS4?
A: This occurs because HDCP (content copyright protection) is enabled by default on PlayStation and Xbox consoles. Open your console's Settings > System > HDMI, and disable "Enable HDCP".

Q: Why can I see video in OBS Studio but cannot hear any game or camera audio?
A: In OBS Studio, double-click your Video Capture Device source, scroll to "Audio Output Mode", and select "Capture audio only" or "Output desktop audio (WaveOut)", ensuring "Use custom audio device" is checked and points to the USB capture card. If audio is still missing, restart OBS Studio.
